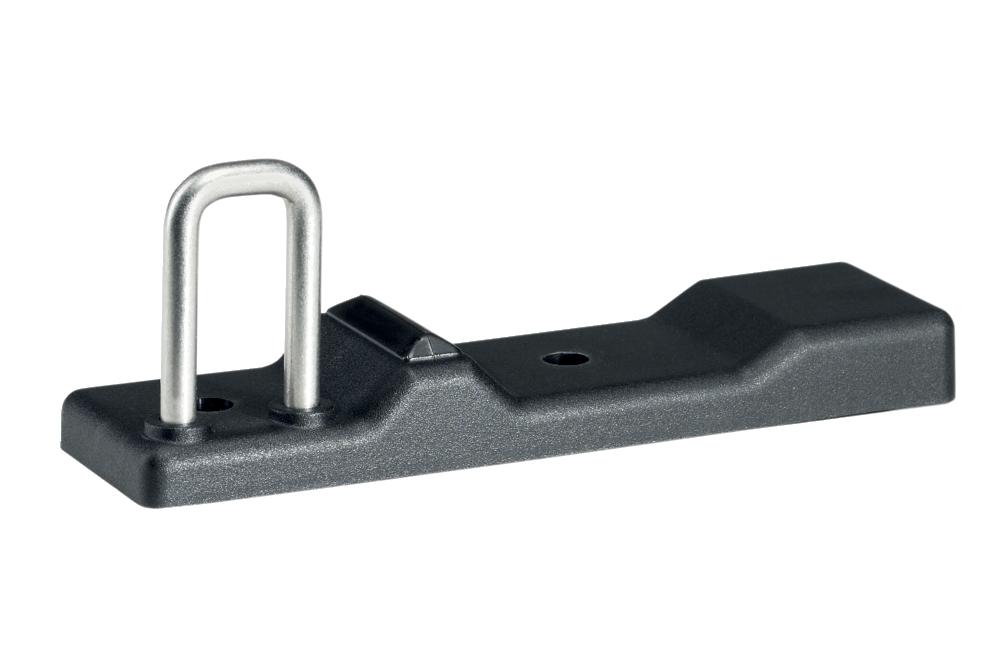

SCHMERSAL AZ/AZM300-B1 SOLENOID INTERLOCK 101218025

Product Code: 101218025

Discover the Schmersal AZM300 series straight actuator, a key component in machine safety applications. This solenoid interlock actuator measures 127mm in length, 35mm in width, and 46mm in height, ensuring a compact fit for various industrial setups. Engineered for reliability and performance, the AZM300 is an essential part of your safety system to maintain secure operations and protect your machinery.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP66 / IP67
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-26-02
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
ETIM 6.0 EC002544
ETIM 7.0 EC002592
Gross Weight (g) 185
Maximum Ambient Temperature (°C) 80
Minimum Ambient Temperature (°C) -25
Minimum Mechanical Life 10000000 Operations
Net Weight (g) 165
Sensor Height (mm) 220
Sensor Length (mm) 64
Series AZM300
Standards EN IEC 60947-5-1
Terminal Type Screw terminals
Utilisation Category AC-15 250 VAC
Utilisation Category DC-13 24 VDC
