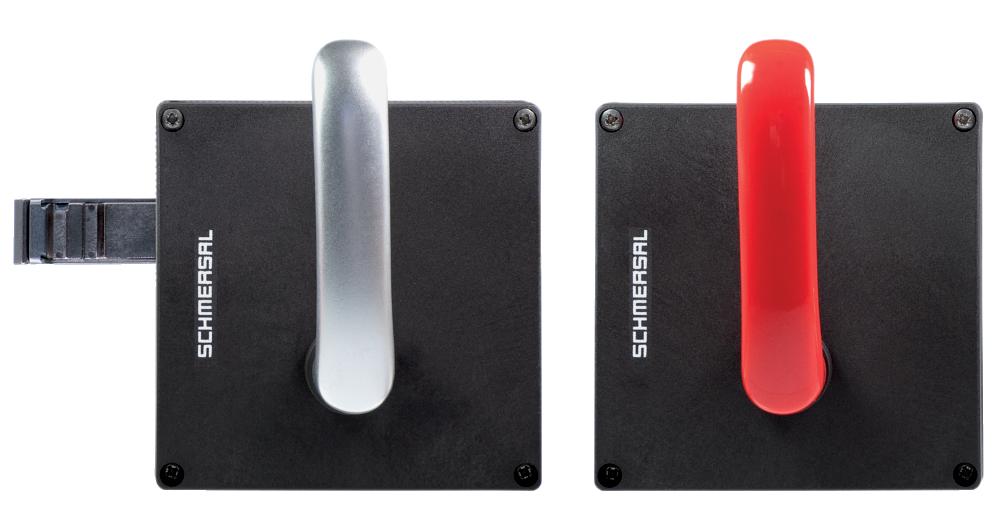

SCHMERSAL AZ/AZM201-B30-RTAG1P1 SOLENOID INTERLOCK 103013497

Product Code: 103013497

Enhance your machine safety with the Schmersal AZM201 series solenoid interlock. This robust actuator is designed for hinged guards, featuring an emergency exit function and a convenient handle grip. Suitable for right-hinged doors, it can be mounted externally and measures 60x115x115 mm for seamless integration into your safety system. Trust in Schmersal's commitment to reliable machine protection solutions.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP66 / IP67
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-24-02
Enclosure Material Thermoplastic, Polyamide PA 6 GF
ETIM 6.0 EC002544
ETIM 7.0 EC002544
Explosion Protection Category 3D | 3G
Gross Weight (g) 55
Maximum Ambient Temperature (°C) 50
Minimum Ambient Temperature (°C) -25
Net Weight (g) 55
Series AZM201
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / EN IEC 61508 / EN IEC 60204-1 / EN IEC 60947-5-3 / BG-GS-ET-14 / BG-GS-ET-20 / EN IEC 62061 / EN IEC 60947-5-5 / EN IEC 60947-1
Terminal Type Screw terminals M20 x 1.5 | rigid or flexible
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
