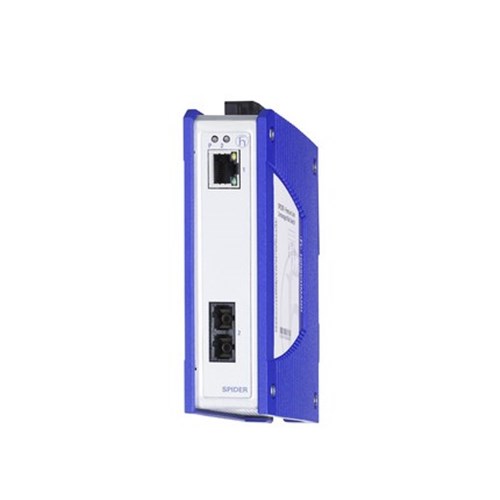

HIRSCHMANN SPIDER III STANDARD LINE, 1X 10/100 BASE TX, RJ45 & 1X 100 BASE FX MULTIMODE SC, 12-24 VDC 942132005

Product Code: 942 132-005

The Hirschmann SPIDER III Standard Line offers a robust networking solution, featuring 1x 10/100BASE TX port with RJ45 connector and 1x 100BASE FX Multimode SC port, powered by a 12-24 VDC supply. This configuration ensures versatile connectivity options for various industrial applications.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 2
No. of Ethernet Ports 1
No. of Fiber Ports 1
Nominal Power (W) 2
Rated Maximum Operational Voltage DC (V) 32
Rated Minimum Operational Voltage DC (V) 9.6
Brand HIRSCHMANN
Degree of Protection IP30
Maximum Operational Voltage DC (V) 32
Minimum Operational Voltage DC (V) 9.6
Mounting Type DIN Rail / Wall
Operational Temperature Range (°C) 0 to +50
Series SPIDER III
Standards and Approvals CE/ FCC/ EN 61131/ cUL61010
