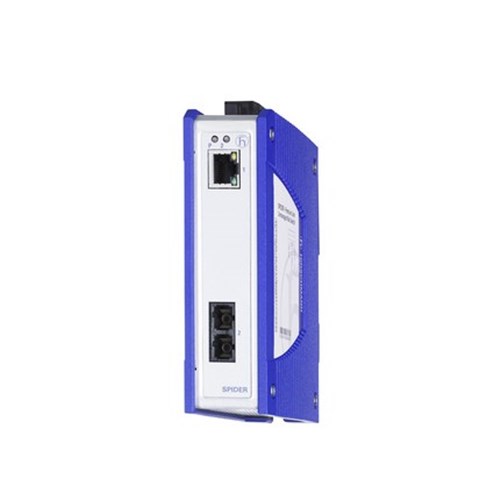

HIRSCHMANN SPIDER III STANDARD LINE, 1X 10/100 BASE TX, RJ45 & 1X 100 BASE FX SINGLEMODE SC, 12-24 VDC 942132006

Product Code: 942 132-006

The Hirschmann SPIDER III Standard Line offers a robust networking solution, featuring 1x 10/100BASE TX port with RJ45 connector and 1x 100BASE FX Singlemode SC port, powered by a 12-24 VDC input. This configuration ensures reliable data transmission over both copper and fiber optic mediums, catering to diverse industrial applications.

Technical Specifications

Current Consumption (mA) 83 at 24 VDC
Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 2
No. of Ethernet Ports 1
No. of Fiber Ports 1
Nominal Power (W) 2
Rated Maximum Operational Voltage DC (V) 32
Rated Minimum Operational Voltage DC (V) 9.6
Brand HIRSCHMANN
Cable Type FX Cable - Single Mode
Connector Type FX Port - SC
Degree of Protection IP30
Dimensions (mm) 102H x 26W x 79D
Mounting Type DIN Rail / Wall
No. of Ports 1 x 10/100BASE-TX RJ45, 1 x 100BASE-FX
Operational Temperature Range (°C) 0 to +60
Power Consumption (W) 2
Rated Operational Voltage DC (V) 12 - 24
Series SPIDER III
Standards and Approvals CE, FCC, EN61131, cUL61010-1/61010-2-201
Switch Type Switch - Unmanaged
