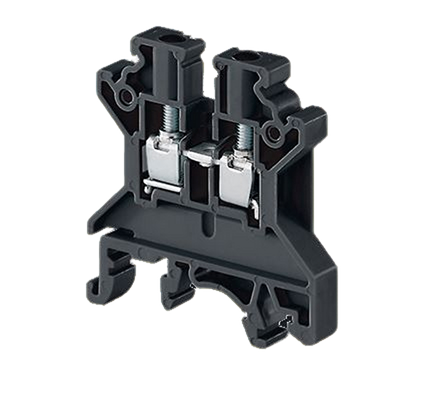

CONNECTWELL 2.5MM BLACK FEED THROUGH PUSH-IN SPRING CLAMP TERMINAL BLOCK CP2.5BK

Product Code: CP2.5BK

Technical Specifications

DIN Rail Mounting DIN 35/DIN 35-15 Rail
Wire Entry Top
Brand CONNECTWELL
Colour Black
Conductor Cross Section (mm²) 0.2 (min), 2.5 (max)
Degree of Protection IP66
Function Feed Through
Height (mm) 38.25
Housing Material Polyamide
Length (mm) 49.7
Pack Quantity 100
Pollution Degree 3
Rated Current (A) 24
Rated Voltage (V) 1000
Surge Voltage (kV) 8
Terminal Type Push-in
Width (mm) 5
Wire Stripping Length (mm) 10
