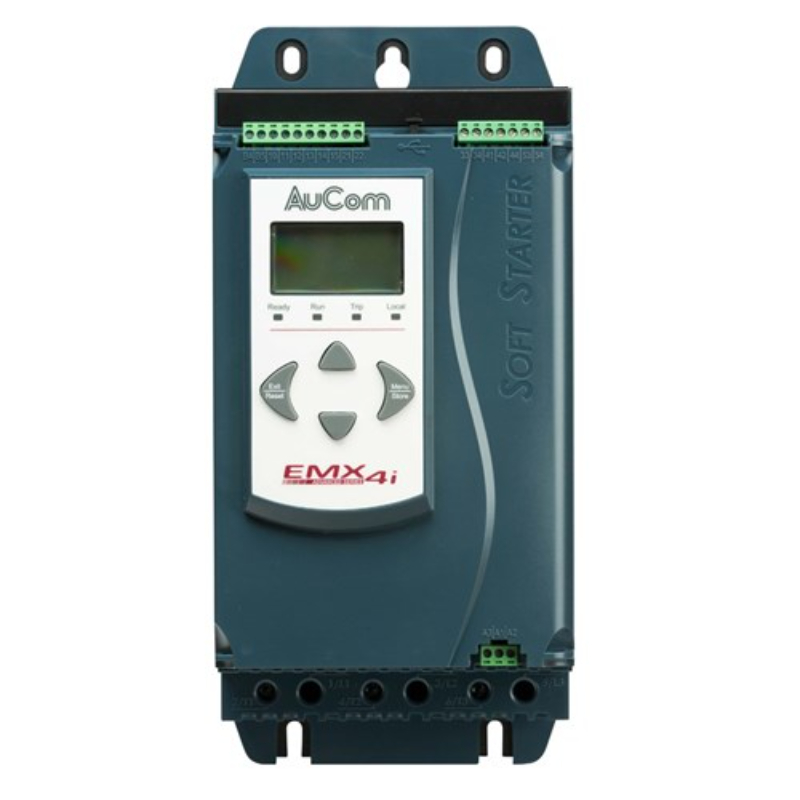

AuCom EMX4i0105BV5C1H SOFT STARTER EMX4i 105A 200-525VAC, CONTROL 110/240VAC

Product Code: EMX4i0105BV5C1H

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S1 with an IP20 rating. The current ratings vary depending on the load, with light at 105A, medium at 86A, heavy at 68A, and severe at 52A. The supply voltage range is between 200-525V AC, while the control voltage is either 110V or 240V AC. This soft starter offers a wide range of motor control features, including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. It also provides motor protection against various issues such as motor thermistor faults, current imbalance, under/over current conditions, phase sequence errors, phase loss, and power loss. In terms of management and monitoring capabilities, the EMX4i includes emergency run mode and run simulation with real-time performance graphs. It also has SCR fail power through operation for uninterrupted operation in case of SCR failure. Additionally, daily on/off scheduling is available for simplified management. For enhanced functionality and customization options, the EMX4i can support an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. The soft starter also includes a USB port for easy parameter upload and download along with data logging capabilities.

Technical Specifications

Advanced Protection Systems Motor overload, Excess start time, Over/Undercurrent, Current imbalace, External trip (x2), Motor thermistor, shorted SCR action, Phase loss, Power loss, Over/ Under Voltage, Over/Under Power , RTD, Supply frequency, Network communications, Heatsink over-temperature, Batter/clock failure
Communication Module DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, Profibus, Profinet
Electromagnetic Capability EMC Emission (Internally bypassed models) - Class B
Embedded I/O 2 x Fixed, 2 x Programmable digital inputs, 1 x Motor Thermistor input, 1 x Fixed, 2 x programable relay outputs, 1 x Analogue output
Multiple Starting Modes Constant Current, Current Ramp, Adaptive Control, Kickstart
Multiple Stop Modes Timed voltage ramp soft stop, Coast to stop, Adaptive control, DC Brake, Soft Brake
Short Circuit Capability Coordination with semiconductor uses (Type 2), Coordination with HRC fuses (Type 1)
Brand AuCom
Certifications IEC 60947-4-2
Degree of Protection IP20
Dimensions (mm) 152W x 336H x 231D
Function XLR-8 Adaptive Control
Operational Temperature Range (°C) -10 to +60
Pollution Degree 3
Rated Control Supply Voltage AC (V) 110/240
Rated Current - Heavy Duty (A) 68
Rated Current - Light Duty (A) 105
Rated Current - Medium Duty (A) 86
Rated Current - Severe Duty (A) 52
Rated Supply Voltage AC (V) 200 - 525
Size of Frame S1
