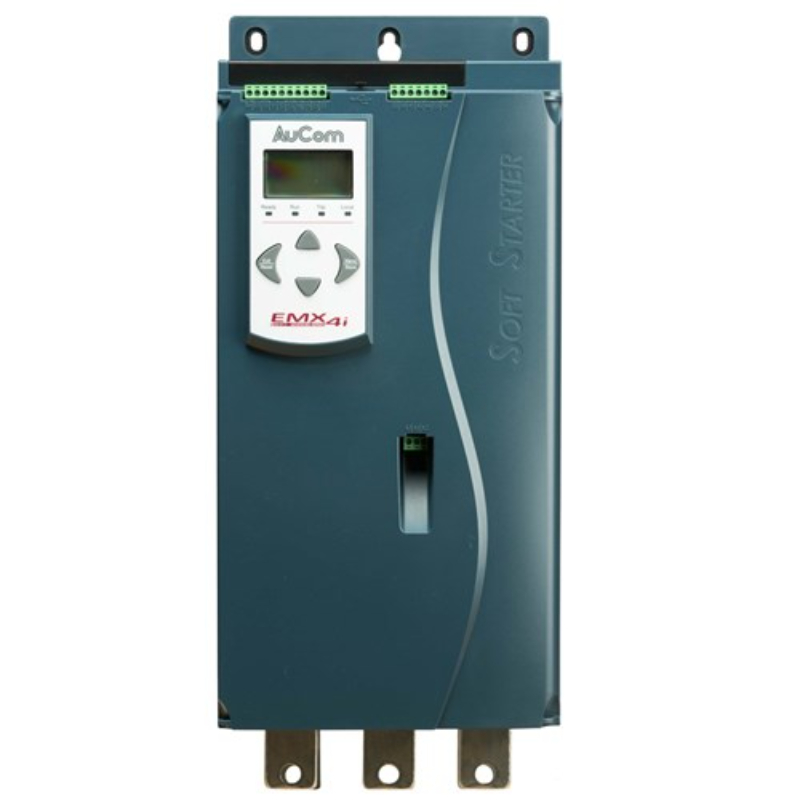

AuCom EMX4i0352BV5C1H SOFT STARTER EMX4i 352A 200-525VAC, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S2 with an IP00 rating. The current ratings vary depending on the load, with light at 352A, medium at 285A, heavy at 234A, and severe at 187A. The supply voltage range for the EMX4i is 200-525V AC, while the control voltage is 110/240V AC. This soft starter offers various motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides protection for motor thermistor, current imbalance, under/over current, phase sequence, phase loss, and power loss. It also includes emergency run mode and run simulation with real-time performance graphs. For simplified management, the EMX4i offers SCR fail power through operation and daily on/off scheduling. It can support additional functionality through the use of an I/O smart card or communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. To facilitate parameter upload and download, the EMX4i is equipped with a USB port and data logging capabilities.
