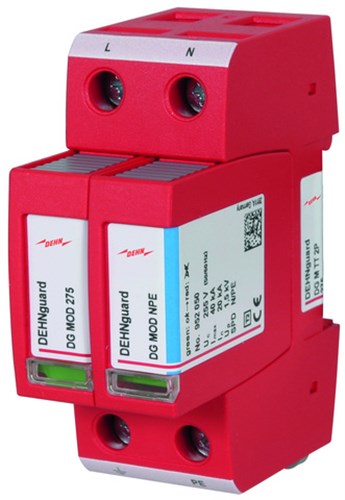

DEHN GUARD M SURGE ARRESTER DGMTT2P385

Product Code: DGMTT2P385

Technical Specifications

Reference No. 952111
Suitable For Power Supply Systems
Brand DEHN
Mounting Method DIN Rail 35mm
Lightning Impulse Current (10/350 µs) - Iimp (kA) 12
Breaking Capacity AC (kA) 25
Maximum Continuous Voltage AC (V) 385
Maximum Discharge Current (8/20µs) - Imax (kA) 40
No. of Conductors 2
Nominal Discharge Current (8/20µs) - In (kA) 20
Nominal Voltage AC (V) 230
Dimensions (mm) 36W x 90H x 66D
Weight (kg) 0.232
Degree of Protection IP20
Standards and Approvals EN 61643-11
