Metal Enclosures & Accessories

IPD MILD STEEL ENCLOSURE WITH TRANSPARENT DOOR GREY IP66 MSB108025GT/SP

Product Code: MSB108025GT/SP

This mild steel enclosure is designed with a grey RAL7035 finish and has an IP66 rating, ensuring protection against dust and water. The transparent door does not come with a mounting plate. The dimensions of this enclosure are 1000mm in height, 800mm in width, and 250mm in depth. It provides a secure and durable solution for housing various equipment or components.

Technical Specifications

Colour Grey, RAL7035
Door Material 4mm Thick Tempered Transparent Glass, 2mm Mild Steel
Door Type Single Transparent Door
No. of Hinges 3
Enclosure Material Mild Steel
Brand IPD
Ambient Temperature Range (°C) -25 to +60
Door Profiles 2
Lock Type 5mm Double-Bit Lock/One 3-Points Lock
Mounting Type Surface Mount
Maximum Operational Voltage AC (V) 1000
Maximum Operational Voltage DC (V) 1500

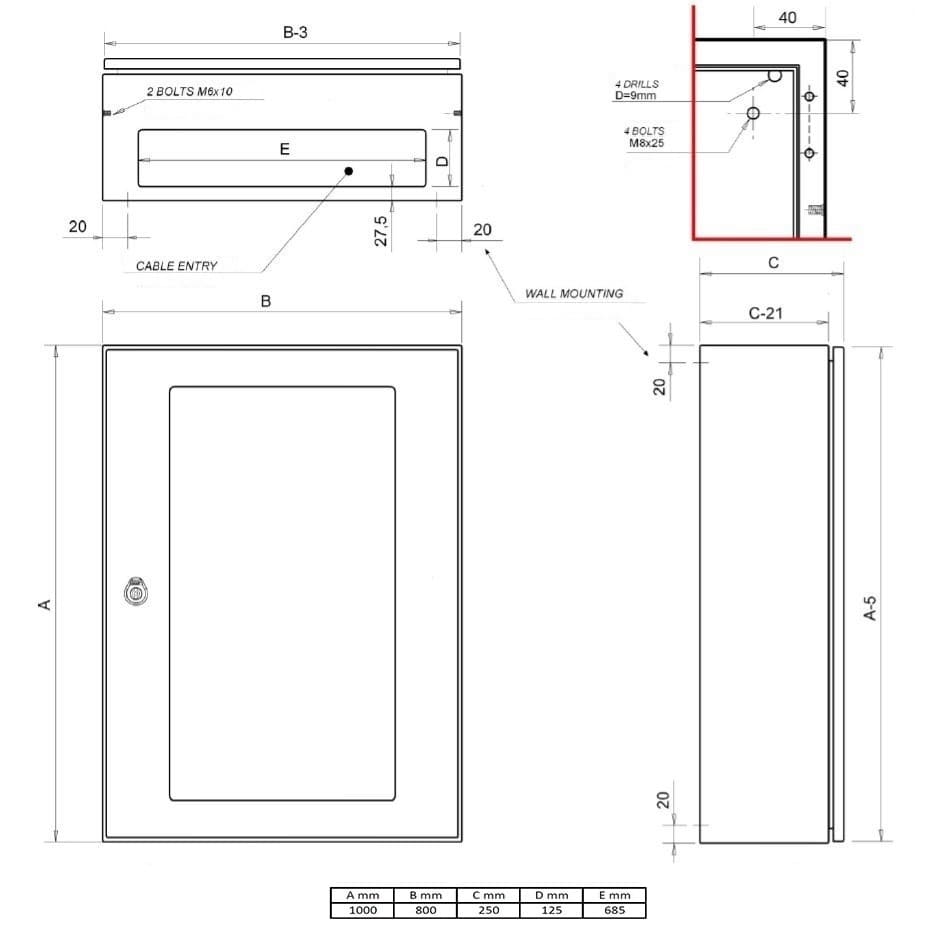

Dimensions (mm) 1000H x 800W x 250D
Thickness (mm) Enclosure: 1.5mm, Door: 2mm, Cable Entry Lid: 2mm
Weight (kg) 34.8
Degree of Protection IP66
Standards and Approvals AS/NZS 61439.1:2016
Certifications UL508A
Rated Impact Resistance IK09
