Version	Withdrawable
Brand	ABB
AC Voltage (V)	690
Current Rating (A)	2000
Current Type	AC
No. of Poles	4P
Power Loss (W)	450
Rated Current (A)	2000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Short-time Withstand Current - Icw (kA/3s)	66
Rated Uninterrupted Current - Iu (A)	2000
Rated Voltage (V)	690
Dimensions (mm)	425H x 407W x 383D
Poles	4P
Icw (kA/1s) - Short-time Withstand Current Rating	85
Icw (kA/3s) - Short-time Withstand Current Rating	66
Iu - Uninterrupted Current Rating (A)	2000
Component Type	Withdrawable

Air Circuit Breakers

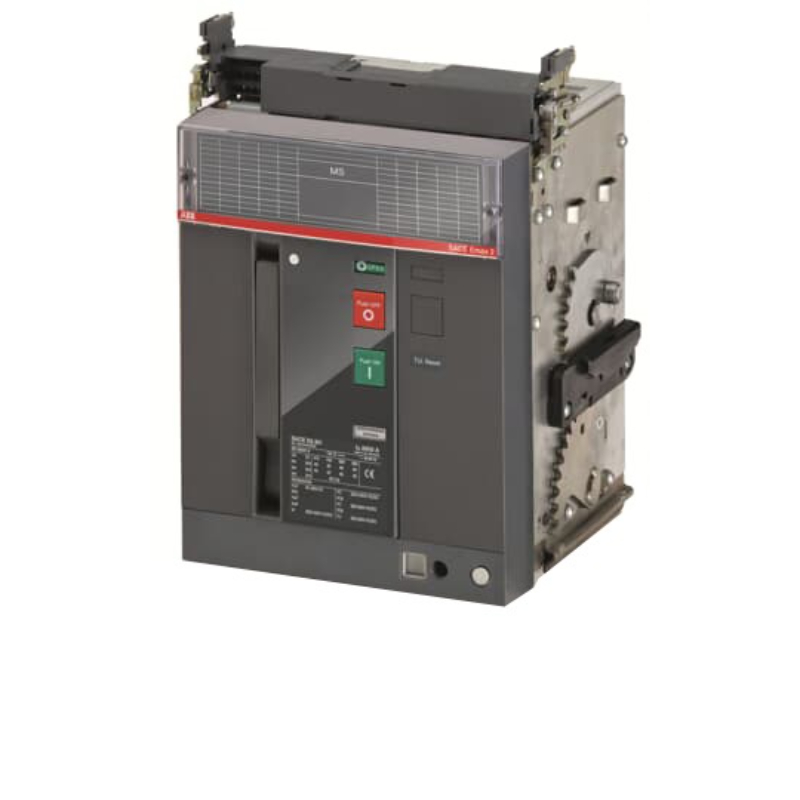

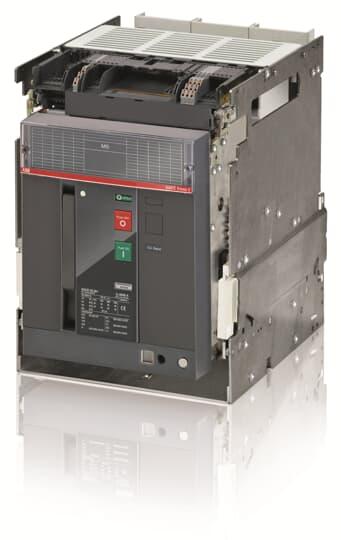

ABB MOVING PART FOR SWITCH DISCONNECTOR E2.2H/MS 2000A, 690V AC 4P 1SDA073536R1
