Product Code: RF1V-4A2BLD1-D24

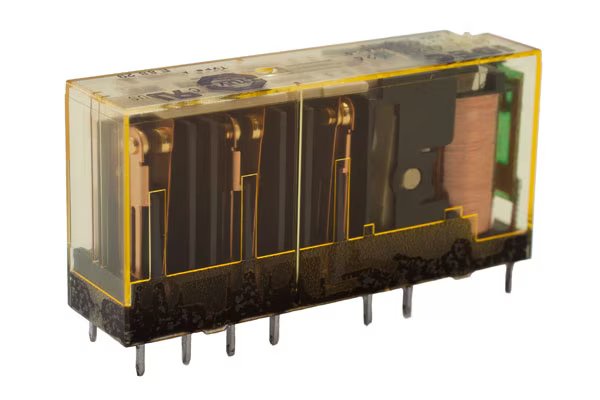

The IDEC RF1V-4A2BLD1-D24 is a relay designed for dependable switching operations in industrial applications. It features 4 Normally Open (NO) and 2 Normally Closed (NC) contacts, with a force guided contact mechanism that is EN50205 Type A TÜV approved. This relay operates on a 24V DC power supply and includes a counter-electromotive force feature for enhanced performance. For secure and easy installation, it comes with both finger-safe DIN rail mount and PC board mount sockets.

Operating Humidity	5 to 85%
Resistance to Shock (m/s²)	200
Brand	IDEC
Operational Temperature Range (°C)	-40 to 85
Coil Voltage DC (V)	24
Contact Resistance (mO)	100
Insulation Resistance (MO)	1000
Maximum Switching Capacity AC (V)	250
Maximum Switching Capacity AC (VA)	1500
Maximum Switching Capacity DC (V)	30
Maximum Switching Capacity DC (W)	180
Maximum Switching Current (A)	6
Minimum Mechanical Life	10,000,000
No. of Normally-closed Contacts	2
No. of Normally-open Contacts	4
No. of Poles	6
Power Consumption (W)	0.5
Rated Current (mA)	20.8
Resistance to Vibrations	10 to 55Hz
Dimensions (mm)	50W x 24H x 13D
Weight (g)	23

Relays

IDEC RF1V RELAY 4NO - 2NC DC 24V RF1V-4A2BLD1-D24
