Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67 / IP69K
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-26-01
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
ETIM 6.0	EC000030
ETIM 7.0	EC002594
Gross Weight (g)	135.1
Maximum Actuating Speed (m/s)	0.2
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Maximum Fuse Rating	6 A gG D-fuse to DIN EN 60269-1
Minimum Ambient Temperature (°C)	-30
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	30000000 Operations
Net Weight (g)	85
No. of Safety Contacts	2
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	250
Sensor Height (mm)	90
Sensor Length (mm)	13
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Thermal Test Current (A)	0.25
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC

Position Switches & Sensors

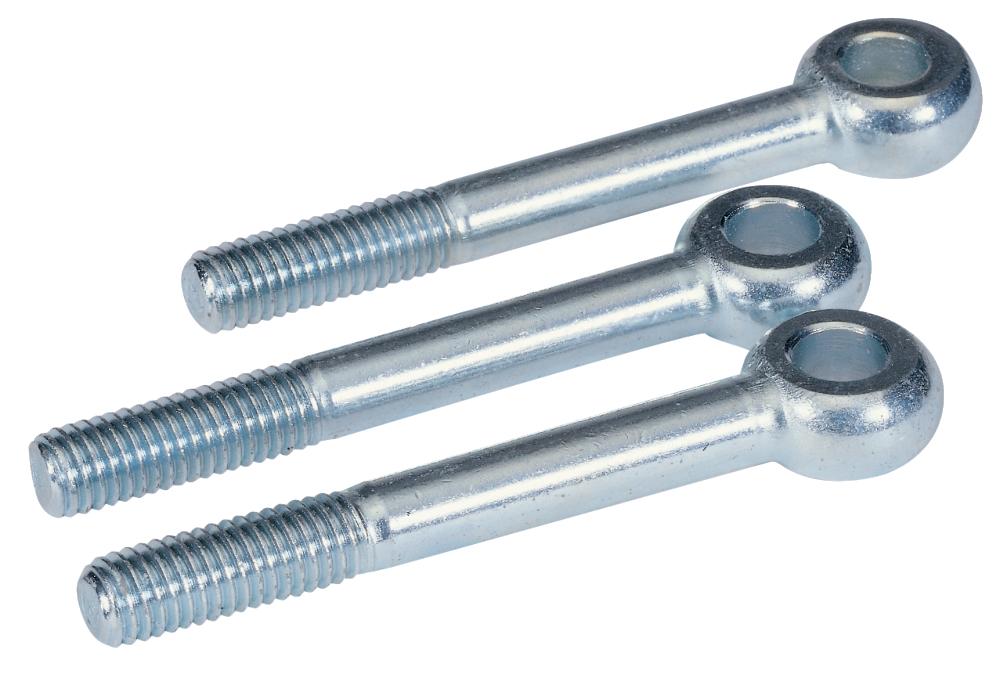

SCHMERSAL EYEBOLT M8X70 ST STEEL. PULL-WIRE EMERGENCY STOP SWITCH 101192471
