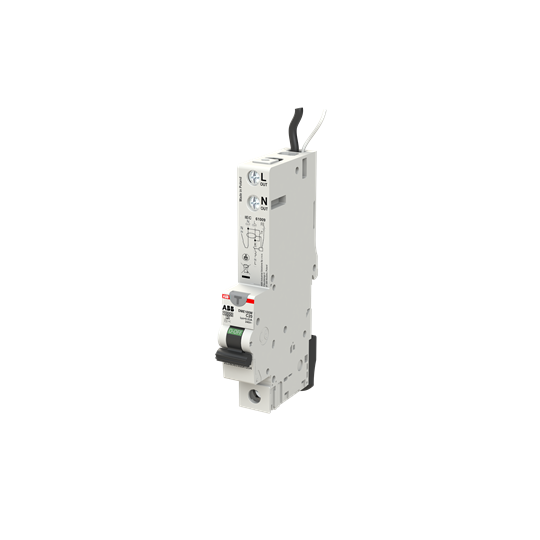

ABB RCBO 6kA 1P+N 16A C CURVE TYPE A 30mA LONG BODY

Product Code: DME60DC16A30

The RCBO is a combined MCB/RCD with a 6kA rating at 240VAC. It is designed for 1P+N (single phase and neutral) systems and has a current rating of 16A. The C curve indicates its response to overcurrents. It is a Type A device with a sensitivity of 30mA. The RCBO is one module wide and has a long body. It provides protection against short circuits, thermal overload, and earth leakage.

Technical Specifications

Brand ABB
AC Voltage (V) 240/415
Current Rating (A) 16
Curve Type C Curve
Dimensions (mm) 17.8Wx125Hx70D
Family DME60D
No. of Poles 1P+N
Operational Temperature Range (°C) -5 to +55
Poles 1P+N
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Operational Voltage AC (V) 240
Rated Residual Current (mA) 30
Residual Current Type A
Series DME60D
Trip Curve C Curve
Type of Residual Current A
