Specifications

Product Type	Latch relay
Brand	IDEC
Series	RR2KP
Actuating Voltage	110 V DC
Electrical Endurance	500000 Operations
No. of N/C Contacts	0
No. of N/O Contacts	0
Timing Range	25 ms
Contact Configuration	DPDT
Electrical Connection	Pin terminal
Rated Current	10 A
Rated Power	1.5 W
Rated Voltage	110 V DC
Terminal Type	Pin
Response Time	100 ms
Nominal Current	13.8 mA
Change-Over Contacts	2
Mechanical Durability	5000000 Operations
Contact Material	Silver
Model	With Check Button
Mounting Type	Socket mount
No. of Pins	11
Vibration Resistance acc. To IEC/EN 60068-2-6	5-55 Hz
Depth	36 mm
Height	80.5 mm
Weight	170 g
Width	36 mm
Humidity	45-85%
Operating Temperature	-5 to 40 degC
Standards and Approvals	CSA, UL

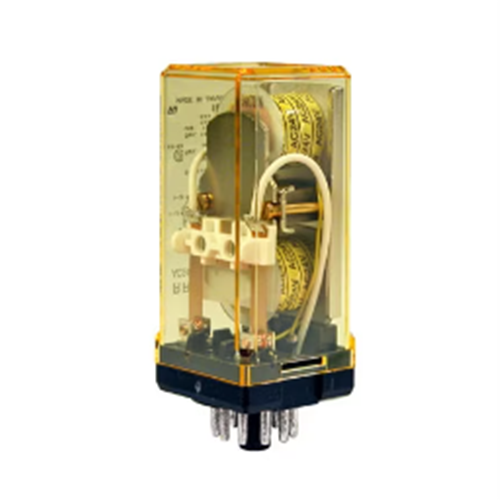

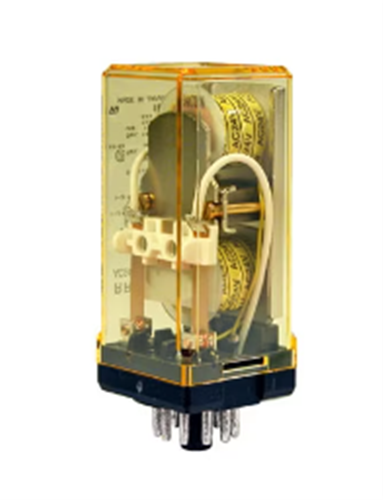

IDEC RR2KP-UCDC110 Latching Relay DPDT 110VDC Coil 10A Pin Terminal
