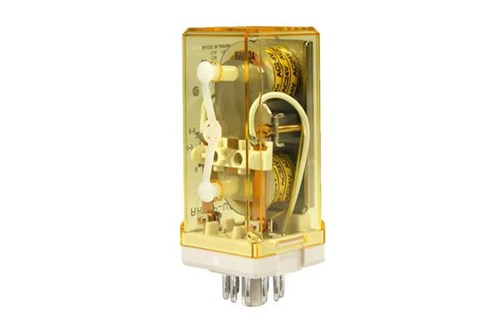

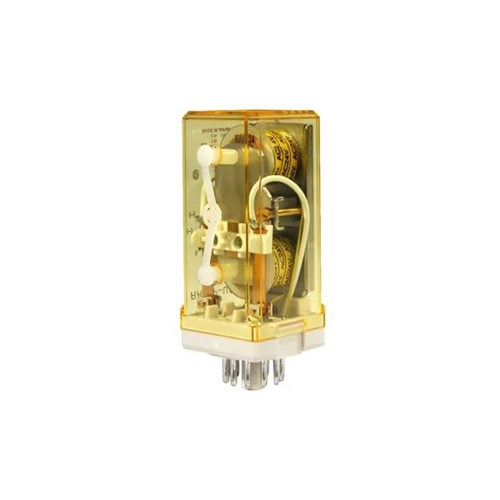

IDEC RR2KP-UCDC24V Latching Relay DPDT 24VDC Coil 10A Pin Terminal

Product Code: RR2KP-UCDC24V

1

Specifications

Product Type	Latching Relay
Brand	IDEC
Coil Voltage	24 VDC
Contact Configuration	DPDT
Contact Material	Silver
Contact Resistance	30 MOhm
Electrical Life	500000 Operations
Humidity	45-85%
Mechanical Life	5000000 Operations
Model	With Check Button
Operating Time	25 ms
Operational Temperature	-25 to 40 deg C
Rated Current	10 A
Rated Power	1.5 W
Shock Resistance	100 ms
Standards and Approvals	CSA, UL
Terminal Type	Pin, Plug-In
Vibration Resistance	5-55 Hz
Weight	170 g
