Specifications

Product Type	Latch relay
Brand	IDEC
Series	RR2KP
Actuating Voltage	24 V DC
No. of N/C Contacts	0
No. of N/O Contacts	0
Timing Range	25 ms
Contact Configuration	DPDT
Electrical Connection	Pin terminal
Rated Current	10 A
Rated Power	1.5 W
Rated Voltage	24 V DC
Terminal Type	Pin
Response Time	100 ms
Timer Relay Type	RR2KP DPDT Relay
Nominal Current	60 mA
Change-Over Contacts	2
Contact Material	Silver
Mounting Type	Socket mount
Vibration Resistance acc. To IEC/EN 60068-2-6	5-55 Hz
Depth	36 mm
Height	80.5 mm
Width	36 mm
Humidity	45-85%
Operating Temperature	-5 to 40 degC
Standards and Approvals	CSA, UL

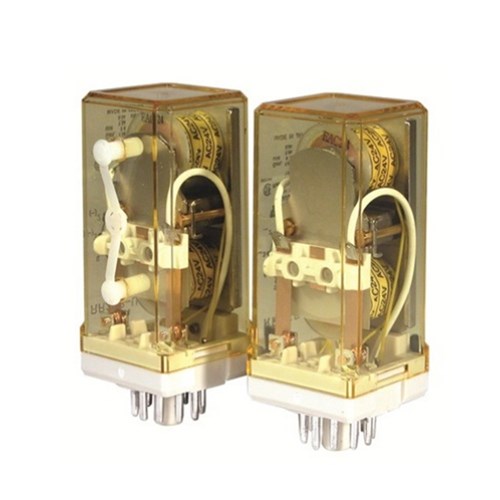

IDEC RR2KP-UDC24 Latching Relay DPDT 24VAC Coil 10A Pin Terminal
