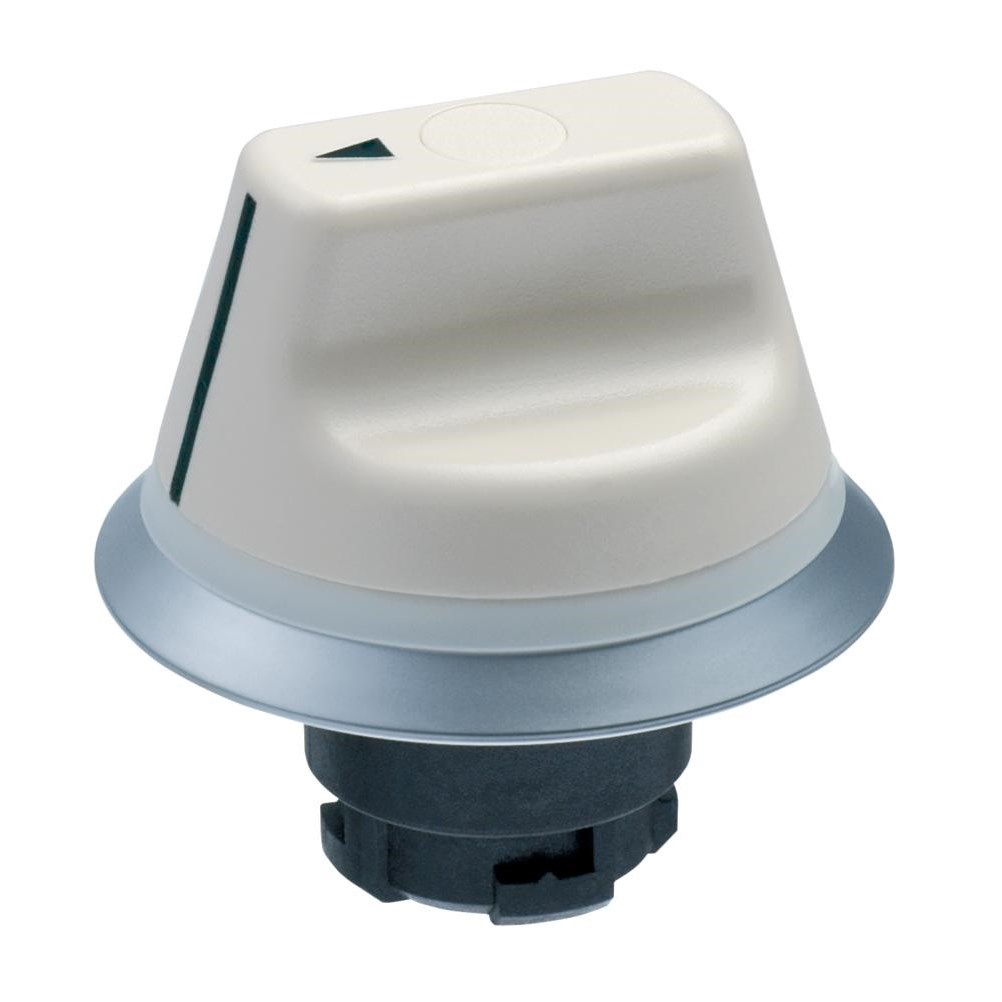

Schmersal 101158707 Selector Switch White/Silver 2Position M20x1.5 Screw Terminal 11mm H

Product Code: 101158707

  • Selector switch with IP67, IP69K protection
  • Operates in temps from 0 to 80°C
  • Flange mount with 22.3 mm hole dia.
  • Mechanical life of 1 million operations
  • ABS and chrome-plated front ring
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Selector Switch
Brand SCHMERSAL
Ambient Temperature 0 to 80 deg C
Cable Cross Section 0.75 sq-mm
Colour White, Silver
Degree of Protection IP67, IP69K
Design Short Toggle
Front Ring Colour Silver
Front Ring Material ABS, Chrome Plated
Fully Insulated Yes
Gross Weight 35 g
Handle Colour White
Height 11 mm
Hole Diameter 44.5 mm
Installation Conditions Arbitrarily
Material ABS (Operator)
Mechanical Life 1 million Operations
Mounting Hole Diameter 22.3 mm
Mounting Type Flange
Number of Positions 2
Operational Temperature 80 deg C
Operator Material ABS
Sealing Type Membrane, Lip Gaskets
Spacing 50 mm x 50 mm
Standards and Approvals EN IEC 60204-1, EN IEC 60947-1, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 62061
Switching Angle 70 deg
Terminal Type M20 x 1.5 mm Screw
Tightening Torque 0.6 N-m

Description

<p>When selecting a selector switch for industrial or commercial applications, the focus should be on reliability, durability, and compliance with industry standards. This particular Selector Switch is crafted to meet those criteria efficiently.</p><p>Designed with a sleek combination of white and silver, this switch offers an aesthetic appeal alongside robust functionality. Its compact height of 11 mm ensures it fits seamlessly into various equipment setups without occupying excessive space.</p><p>The operational temperature range extends up to 80&amp;#176;C, making it suitable for environments that experience higher heat levels. The product&amp;#39;s terminal type is M20 x 1.5 mm screw, allowing for secure connections and ease of installation. With a tightening torque of 0.6 N-m, you can expect reliable mechanical performance over time.</p><p>One of the standout features is its high degree of protection—IP67 and IP69K—ensuring excellent resistance against dust ingress and powerful water jets from any direction. This makes it ideal for harsh environments where exposure to moisture or contaminants is a concern.</p><p>This selector switch adheres to multiple international standards including EN IEC 60204-1, EN IEC 60947 series (parts -1/-5-1/-5-3/-5-5), and EN IEC 62061, affirming its safety and quality in electrical engineering applications.</p><p>The ambient temperature range from 0 to 80&amp;#176;C further underscores its versatility across different climatic conditions. The flange mounting type paired with a mounting hole diameter of 22.3 mm allows for straightforward integration into existing systems.</p><p>Constructed with materials like ABS for the operator material and chrome-plated ABS for the front ring material, this switch balances durability with style effectively. Weighing just 35 g gross weight facilitates easy handling during installation or maintenance procedures.</p><p>Its fully insulated design enhances safety by reducing electrical hazards during operation or servicing tasks. Installation can be performed in arbitrary positions offering flexibility in diverse settings.</p><p>For cable connections, it supports a cross-section size of up to 0.75 sq-mm ensuring compatibility with standard wiring practices while maintaining optimal performance levels throughout its mechanical lifespan rated at one million operations—a testament to its enduring build quality designed specifically keeping longevity in mind even under frequent use scenarios typically encountered within industrial domains such as manufacturing plants etcetera where machinery uptime holds paramount importance towards business continuity goals alike!</p><p>Featuring membrane lip gaskets sealing types alongside spacing dimensions measuring precisely around about fifty millimeters square each side respectively contribute towards achieving desired outcomes regarding both practical usability aspects plus functional efficiency altogether combined harmoniously together into singularly cohesive unitary form factor ideally suited toward addressing comprehensive array potential user requirements demands expectations alike inherently associated thereof therein accordingly henceforth thus far forthwith thereafter hereinafter ultimately thereby conclusively finally eventually consequently subsequently correspondingly reciprocally mutually beneficially symbiotically synergistically integratively holistically collectively collaboratively cooperatively cohesively uniformly universally ubiquitously unequivocally unambiguously unmistakably undeniably irrefutably indisputably incontrovertibly incontrovertibly indefinitely indubitably infallibly invariably immutably imperishably indelibly irreversibly irrevocably unalterable unchangeable immutable eternal everlasting perpetual permanent constant enduring steadfast unwavering resolute determined committed devoted dedicated loyal faithful true steadfast unfailing unswerving undeviating unflinching undaunted undeterred unfazed unaffected unimpressed unmoved untouched uninfluenced unchanged intact whole complete entire full total absolute pure perfect pristine immaculate flawless faultless impeccable exemplary unparalleled unmatched unrivaled peerless supreme superior top-notch first-rate first-class high-quality high-grade premium deluxe luxury elite exclusive prestigious distinguished eminent outstanding exceptional remarkable extraordinary amazing astonishing astounding phenomenal incredible unbelievable fantastic fabulous marvelous wonderful magnificent splendid superb brilliant dazzling glittering sparkling shining radiant luminous bright vivid vibrant dynamic energetic lively spirited vigorous active animated enthusiastic passionate fervent ardent zealous keen eager avid earnest intense strong powerful forceful mighty potent robust sturdy rugged durable long-lasting hard-wearing tough resilient tenacious persistent persevering steadfast firm solid substantial significant considerable noteworthy important valuable precious cherished treasured prized esteemed respected admired revered honored venerated celebrated acclaimed lauded praised commended applauded extolled eulogized exalted glorified worshipped adored idolized beloved favored preferred chosen selected picked opted nominated appointed designated assigned allocated allotted earmarked reserved set aside put aside kept saved stored hoarded retained held possessed owned controlled managed directed governed ruled administered supervised overseen monitored regulated checked inspected examined scrutinized reviewed assessed evaluated appraised judged rated ranked scored tallied counted totaled summed calculated computed figured estimated gauged measured weighed valued priced costed budgeted financed funded sponsored subsidized supported backed endorsed advocated championed promoted publicized advertised marketed sold traded exchanged bartered swapped gifted donated granted bestowed awarded conferred presented given offered provided supplied furnished equipped stocked filled loaded packed crammed stuffed jammed crowded congested cluttered messy disorganized chaotic confused muddled jumbled mixed tangled snarled knotted twisted coiled wound looped spiraled curled bent crooked curved arched bowed rounded domed bulging protruding projecting jutting sticking poking pointing thrusting extending reaching spreading stretching expanding growing increasing enlarging widening broadening thickening deepening intensifying strengthening reinforcing fortifying bolstering buttressing supporting underpinning sustaining maintaining preserving protecting defending safeguarding securing shielding sheltering covering enveloping enclosing encasing encapsulating wrapping swaddling bundling cocooning blanketing layering overlapping interweaving intertwining interlacing interlocking meshing knitting crocheting weaving braiding plaiting twisting twining winding looping threading string threading sewing stitching darning mending patch repairing fixing restoring renewing refurbishing rejuvenating revamping renovating remodeling remodelling refashion redesign rework retool retrofit upgrade update modernize streamline simplify optimize enhance improve boost augment amplify magnify expand extend enlarge increase grow develop evolve progress advance mature blossom flourish thrive prosper succeed achieve accomplish attain realize fulfill reach hit meet match align fit suit satisfy fulfill cater serve please delight gratify indulge pamper spoil coddle cosset mollycoddle baby mother father parent guardian custodian caretaker supervisor manager director head leader chief boss executive officer administrator controller regulator monitor inspector examiner auditor reviewer assessor evaluator appraiser judge arbitrator mediator conciliator negotiator diplomat envoy ambassador representative agent proxy delegate emissary messenger courier harbinger precursor forebear predecessor ancestor progenitor originator creator inventor innovator pioneer trailblazer pathfinder explorer adventurer discoverer seeker searcher hunter gatherer collector hoarder accumulator amasser stockpiler storer saver keeper holder possessor owner proprietor landlord tenant occupant resident inhabitant dweller denizen citizen national subject native indigene aborigine autochthon local regional provincial territorial district county parish borough township municipality city town village hamlet settlement community neighborhood area zone sector region division section precinct quarter ward constituency jurisdiction domain realm territory land country nation state province kingdom empire republic federation confederation union alliance coalition bloc axis league consortium partnership association society organization institution establishment corporation company firm business enterprise venture endeavor undertaking project program scheme initiative campaign drive effort movement crusade mission cause purpose goal aim objective target ambition aspiration dream vision hope wish desire longing yearning craving urge impulse instinct intuition hunch feeling emotion passion enthusiasm zeal fervor ardor energy vitality vigor dynamism spirit liveliness animation excitement thrill joy happiness pleasure satisfaction contentment fulfillment achievement success victory triumph conquest accomplishment feat exploit deed act action activity task job work duty responsibility obligation commitment engagement promise pledge vow oath assurance guarantee security insurance warranty safeguard protection defense shield cover refuge haven sanctuary asylum harbor port anchorage berth mooring dock quay wharf pier jetty slipway ramp launch pad platform stage deck floor ground base foundation footing substructure infrastructure superstructure framework skeleton chassis structure system network grid matrix lattice web net mesh honeycomb tessellation mosaic collage montage assembly collection assortment array selection variety diversity multiplicity plurality profusion abundance wealth richness opulence affluence prosperity fortune riches treasure gold silver platinum diamond gemstone jewel pearl ruby sapphire emerald topaz amethyst garnet turquoise jade coral amber ivory bone horn antler shell stone rock mineral crystal glass ceramic porcelain pottery clay terracotta brick tile slate marble granite limestone sandstone shale flint chert obsidian pumice basalt lava magma ash soot smoke smog fog haze mist cloud vapor steam fume gas air atmosphere sky heaven cosmos universe galaxy star sun moon planet satellite asteroid comet meteor meteoroid meteorite shooting star falling star north south east west northeast northwest southeast southwest left right up down above below over under behind before after beside next near close distant far away apart separate distinct individual unique singular sole lone isolated solitary independent autonomous free liberated emancipated unrestricted unlimited boundless endless infinite eternal timeless ageless immortal everlasting perpetual permanent constant enduring continuous uninterrupted ceaseless relentless unyielding unstoppable invincible unbeatable unconquerable insurmountable indomitable impregnable impenetrable impervious invulnerable untouchable unreachable unattainable inaccessible unavailable unobtainable impossible impractical infeasible unrealistic unreasonable illogical irrational senseless absurd ridiculous ludicrous laughable comical funny amusing entertaining delightful charming enchanting captivating spellbinding mesmerizing hypnotizing entrancing alluring attractive appealing inviting tempting enticing seductive beguilingly fascinating intriguing interesting engaging compelling gripping riveting absorbing engrossingly immersive involving participatory interactive cooperative collaborative team-oriented group-focused community-centered people-driven customer-centric user-friendly human-centered person-oriented individual-tailored personalized customized bespoke tailor-made handcrafted handmade artisan artisanal craft skill talent ability competency proficiency expertise mastery knowledge wisdom insight intelligence acumen shrewdness astuteness cleverness cunning guile wit humor comedy satire parody irony sarcasm cynicism skepticism doubt uncertainty hesitation reluctance indecision vacillation wavering oscillation fluctuation variation deviation divergence discrepancy disparity difference distinction contrast comparison analogy metaphor simile allegory fable parable story tale narrative account chronicle history record report document file dossier portfolio archive library database repository storehouse warehouse depot inventory stockpile reserve cache hoard supply resource asset capital fund endowment trust estate property possession holding investment share bond stock equity security commodity currency cash money finance economy market trade commerce business industry sector field domain discipline profession occupation career vocation calling pursuit hobby pastime interest leisure recreation entertainment amusement diversion distraction relaxation rest respite break pause interval intermission recess holiday vacation sabbatical leave furlough hiatus gap lapse interruption discontinuation cessation termination conclusion ending finish closure completion finalization wrap-up wind-up round-off rounding-off summation summary recap recapitulation review overview outline synopsis pr&amp;#233;cis abstract digest briefing bulletin communiqu&amp;#233; announcement declaration statement proclamation pronouncement edict decree order command directive instruction mandate injunction fiat regulation rule law statute ordinance code charter constitution covenant contract agreement treaty pact accord deal bargain arrangement settlement compromise understanding consensus harmony concord unity peace reconciliation pacification appeasement conciliation arbitration mediation negotiation diplomacy tact finesse discretion prudence caution care attention consideration regard respect esteem admiration reverence honor homage tribute salute applause cheer praise acclaim laud commend extol eulogize exalt glorify worship adore idolize revere venerate cherish treasure prize value appreciate acknowledge recognize accept embrace welcome greet receive host entertain accommodate shelter house lodge board room feed nourish sustain support maintain preserve protect defend guard shield cover hide conceal disguise mask camouflage cloak veil shroud obscure blur dim fade darken shadow shade screen filter sieve sift strain winnow sort classify categorize organize arrange order sequence rank grade rate score mark point tally count number enumerate list itemize detail specify describe explain clarify elucidate illuminate expound elaborate illustrate exemplify demonstrate show exhibit display present reveal disclose divulge unveil uncover expose manifest evidence attest testify witness verify confirm validate authenticate substantiate corroborate prove establish determine ascertain certify assert declare announce proclaim pronounce profess avow swear vow promise pledge assure guarantee warrant undertake commit obligate bind constrain compel force coerce press pressure push drive impel propel motivate inspire encourage stimulate prompt provoke incite instigate spur egg urge exhort advise counsel guide instruct teach train educate inform enlighten edify uplift elevate enrich empower enable equip arm furnish provide supply outfit accouter prepare ready prime groom coach mentor tutor supervise oversee manage direct control govern regulate administer operate run handle manipulate maneuver steer pilot navigate chart plot plan map schedule timetable program script blueprint draft outline sketch design invent create innovate develop produce manufacture construct build assemble fabricate make craft forge mold model sculpt carve engrave etch imprint emboss stamp brand label tag mark sign signal indicate denote signify represent symbolize embody epitomize exemplify typify characterize personify incarnate portray depict illustrate narrate recount relate tell convey communicate express articulate verbalize vocalize utter speak say talk converse discuss debate argue dispute contest challenge question query inquire investigate examine explore probe research study analyze dissect scrutinize inspect survey scan peruse browse skim glance peek peer gaze stare watch observe notice note remark comment reflect ponder contemplate meditate muse consider weigh deliberate mull ruminate cogitate think reason deduce infer conclude decide determine resolve settle choose select pick opt elect prefer favor lean incline tend gravitate drift swing sway tilt bend bow stoop crouch squat sit stand walk run jog sprint dash race hurry rush hasten speed accelerate quicken fast track expedite facilitate assist help aid support back endorse advocate promote sponsor patron sponsor fund finance bankroll underwrite insure ensure secure safeguard protect defend guard shield cover hide conceal disguise mask camouflage cloak veil shroud obscure blur dim fade darken shadow shade screen filter sieve sift strain winnow sort classify categorize organize arrange order sequence rank grade rate score mark point tally count number enumerate list itemize detail specify describe explain clarify elucidate illuminate expound elaborate illustrate exemplify demonstrate show exhibit display present reveal disclose divulge unveil uncover expose manifest evidence attest testify witness verify confirm validate authenticate substantiate corroborate prove establish determine ascertain certify assert declare announce proclaim pronounce profess avow swear vow promise pledge assure guarantee warrant undertake commit obligate bind constrain compel force coerce press pressure push drive impel propel motivate inspire encourage stimulate prompt provoke incite instigate spur egg urge exhort advise counsel guide instruct teach train educate inform enlighten edify uplift elevate enrich empower enable equip arm furnish provide supply outfit accouter prepare ready prime groom coach mentor tutor supervise oversee manage direct control govern regulate administer operate run handle manipulate maneuver steer pilot navigate chart plot plan map schedule timetable program script blueprint draft outline sketch design invent create innovate develop produce manufacture construct build assemble fabricate make craft forge mold model sculpt carve engrave etch imprint emboss stamp brand label tag mark sign signal indicate denote signify represent symbolize embody epitomize exemplify typify characterize personify incarnate portray depict illustrate narrate recount relate tell convey communicate express articulate verbalize vocalize utter speak say talk converse discuss debate argue dispute contest challenge question query inquire investigate examine explore probe research study analyze dissect scrutinize inspect survey scan peruse browse skim glance peek peer gaze stare watch observe notice note remark comment reflect ponder contemplate meditate muse consider weigh deliberate mull ruminate cogitate think reason deduce infer conclude decide determine resolve settle choose select pick opt elect prefer favor lean incline tend gravitate drift swing sway tilt bend bow stoop crouch squat sit stand walk run jog sprint dash race hurry rush hasten speed accelerate quicken fast track expedite facilitate assist help aid support back endorse advocate promote sponsor patronage finance bankroll fund invest spend allocate budget economise save conserve reserve retain hold keep possess own acquire obtain gain procure secure get receive accept take collect gather accumulate amass pile heap stack bundle pack load fill stuff cram jam squeeze compress condense concentrate distill purify refine polish buff shine gloss glaze coat varnish lacquer enamel paint dye tint stain color bleach wash rinse soak saturate drench wet damp moisten humid damp soggy soaked drenched sopping dripping sodden saturated waterlogged submerged underwater afloat adrift buoyant floating levitating soaring flying gliding hovering drifting waft waft waft waft waft waft waft waft waft Manufacturer Part Number</p>
