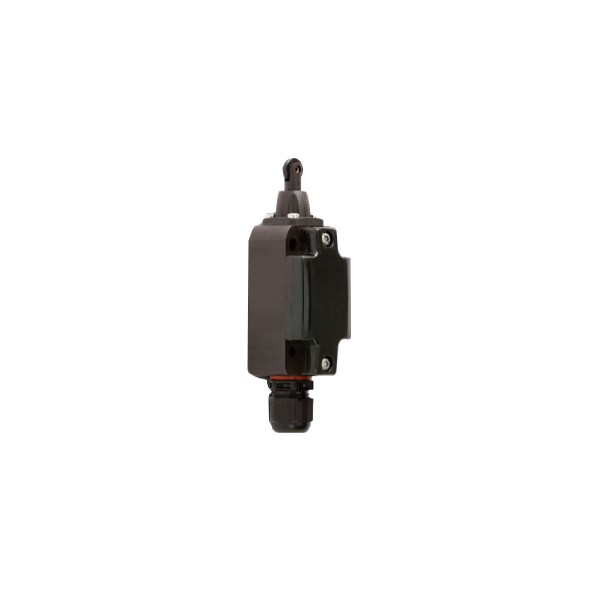

Stahl 275065 Position Switch 2NC Duroplast GF Cover Polyamide Glass Fibre Reinforced

Product Code: 275065

  • Rated for 250/500 VAC, 2-4 A
  • Durable Duroplast GF & Polyamide housing
  • IP66 protection for harsh conditions
  • Certified by ATEx, CSA, CQST, EAC, IECEx, KGS
  • Features 2NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand STAHL
Application Application range (zones) - 1, 2, 21, 22
Colour Enclosure - Black
Contact Configuration 2NC
Degree of Protection IP66
Fuse Type gL/gG
Housing Material Duroplast GF Cover, Polyamide Glass Fibre Reinforced
Material Cover - Duroplast GF, Polyamide, Glass fibre reinforced
Rated Current 2-4 A
Rated Voltage 250/500 VAC
Standards and Approvals ATEx (BVS), Canada/USA (CSA), China (CQST), EAC (CCVE), IECEx (BVS), Korea (KGS)

Description

<p>When it comes to selecting a switch for industrial and commercial applications, reliability and compliance with international standards are paramount. This switch is designed to meet the rigorous demands of various environments while ensuring safety and performance.</p><p>Rated for voltages between 250 and 500 VAC, this switch can handle currents ranging from 2 to 4 amperes. This makes it suitable for a wide range of electrical systems, providing flexibility in application without compromising on efficiency or safety.</p><p>The housing material is crafted from Duroplast GF Cover combined with Polyamide Glass Fibre Reinforced components. These materials are known for their durability and resistance to environmental stressors, making the switch robust enough to withstand harsh conditions. The degree of protection offered by this design is IP66, indicating that the product is dust-tight and protected against powerful water jets—ideal for demanding industrial settings where exposure to dust and moisture is common.</p><p>In terms of standards and approvals, this switch holds certifications from several global bodies: ATEx (BVS) for explosive atmospheres in Europe; CSA certification which assures compliance in Canada/USA; CQST approval certifying adherence to Chinese standards; EAC (CCVE) marking its conformity within Eurasian countries; IECEx (BVS), an internationally recognized standard for equipment used in explosive atmospheres; and KGS certification valid in Korea. These endorsements highlight the product&amp;#39;s universal applicability across different regulatory environments, ensuring that it meets stringent safety criteria worldwide.</p><p>The contact configuration features a 2NC setup (two normally closed contacts). This arrangement ensures that the circuit remains closed until intentionally opened by user action—providing an additional layer of security against accidental disconnection or power loss.</p><p>This comprehensive combination of features makes the switch an excellent choice for professionals seeking reliable performance under challenging conditions. Whether you&amp;#39;re working on installations requiring high levels of protection or need assurance of compliance with international standards, this product delivers both versatility and peace of mind.</p>
