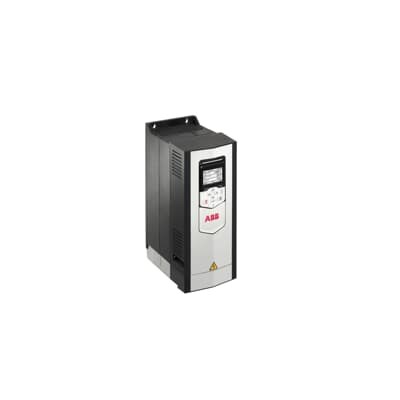

ACS880-01 drives are customized for various industries, including oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. Can control a wide range of applications such as cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, pumps, and fans. Compact package for easy installation and commissioning. Wall-mounted installation is standard; cabinet installation is optional. Available in enclosure classes up to IP55, suitable for most environments and installations. All essential features are built-in, including a choke for harmonic filtering. Optional features include brake chopper, EMC filter, communication protocol adapter, functional safety, external output filters, and I/O extension modules.

Specifications

Product Type	General
Brand	ABB
Communication Protocols	CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO
Degree of Protection	IP21
Frame Size	R1
Includes	Control unit PC connection
Mounting Type	Wall-mounted
Number of Hardware Interfaces	Industrial Ethernet 0 Other 4 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 1
Power Factor	0.98
