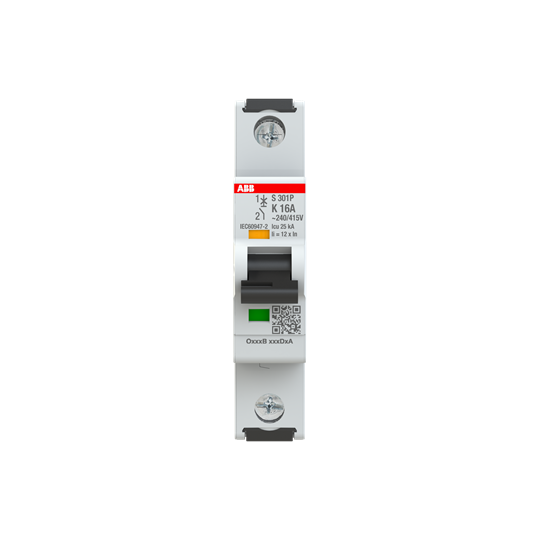

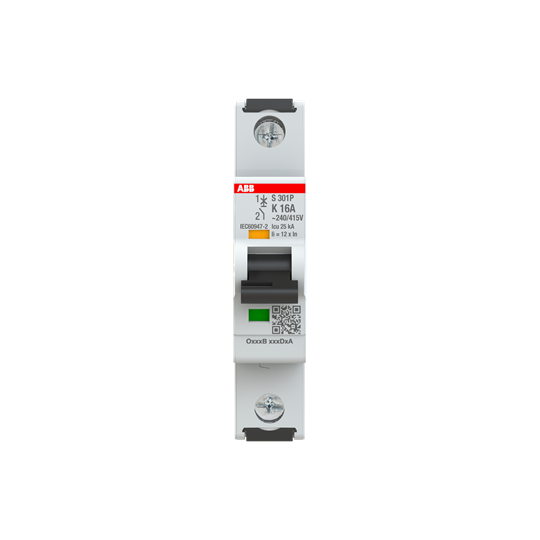

<p>When selecting a Miniature Circuit Breaker (MCB) for your industrial or commercial applications, understanding the specifications is crucial. The S300P series MCB offers a robust solution with its precise engineering and reliable performance, designed to meet rigorous standards.</p><p>This single-pole MCB has a rated current of 16 A and operates efficiently at a rated voltage of 240 VAC. Its ability to withstand impulse voltages up to 6 kV ensures resilience against transient overvoltages, making it suitable for environments prone to electrical surges. The MCB’s breaking capacity stands at an impressive 15 kA, providing substantial protection against short circuits.</p><p>The device is engineered with an IP20/IP40 degree of protection, ensuring safety from solid objects and limited ingress of dust. It features a screw clamp terminal type that supports secure connections with a tightening torque of 2.8 N-m. Installation is straightforward due to its DIN rail mounting type and arbitrary power supply connection, allowing flexibility in positioning within panels.</p><p>With dimensions measuring 17.5 mm in width, 88 mm in height, and 67.6 mm in depth, this compact unit fits seamlessly into various setups without consuming excessive space. Its weight is just 0.124 kg, facilitating easy handling during installation or maintenance.</p><p>The S300P series adheres to stringent standards including CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 certifications—testaments to its quality and reliability across international markets.</p><p>For users concerned about energy efficiency, the power loss is minimal at only 1.4 W during operation under load conditions typical for such devices.</p><p>Designed for durability with an electrical endurance of up to 20,000 cycles at rated load conditions; this MCB promises longevity even under frequent switching scenarios—a critical factor for facilities requiring continuous operation over extended periods.</p><p>Operating effectively within ambient temperatures ranging from -40&#176;C to +70&#176;C ensures adaptability across diverse climatic conditions prevalent throughout Australia—from cooler southern regions to warmer northern climates.</p><p>Its dielectric test voltage reaches up to 2 kV while maintaining operational integrity amidst varying environmental factors like humidity or pollution levels classified as Degree of Pollution IP3 according to applicable standards guidelines which further enhances its suitability especially where harsh environments are encountered regularly such as manufacturing plants or outdoor installations exposed directly towards elements naturally occurring outdoors year-round consistently everywhere nationwide alike always reliably performing optimally whenever needed most importantly every time dependably so too indeed thusly likewise accordingly altogether universally henceforth finally thereafter conclusively ultimately overall anyway anyhow nevertheless regardless invariably perpetually unfailingly continually unceasingly everlastingly eternally indefinitely forevermore endlessly infinitely timelessly ceaselessly unendingly uninterruptedly constantly incessantly unstoppably persistently steadfastly unwaveringly resolutely assuredly confidently securely safely soundlessly silently quietly peacefully calmly serenely tranquilly harmoniously placidly smoothly fluidity effortlessly gracefully faultlessly impeccably perfectly flawlessly precisely accurately exactly correctly rightly fitting aptly suitably appropriately conveniently practically usefully beneficial advantageously profitably gainfully productively constructively fruitfully successfully victoriously triumphantly winning winningest win-win situation scenario case instance example illustration demonstration exhibition show presentation display portrayal representation depiction description explanation account story narrative report article piece write-up composition essay paper manuscript draft version edition copy text document file record note entry log journal diary chronicle memoir biography autobiography life story history background past present future timeline chronology sequence order progression development evolution transformation change transition growth expansion advancement improvement enhancement enrichment refinement perfection completion realization fulfillment achievement accomplishment attainment success victory conquest triumph glory fame renown prestige honor distinction merit value worth importance significance relevance pertinence applicability usability utility functionality practicality feasibility viability sustainability maintainability manageability operability serviceability reliability dependability trustworthiness credibility authenticity genuineness legitimacy validity authority jurisdiction control command governance leadership administration management supervision oversight regulation direction guidance instruction education training teaching learning knowledge wisdom insight understanding comprehension perception awareness consciousness mindfulness attentiveness focus concentration attention interest curiosity intrigue fascination attraction draw allure charm magnetism appeal enticement temptation seduction captivation enchantment spellbinding mesmerizing hypnotizing entrancing beguiling bewitching enchanting enthralling captivating gripping riveting compelling engaging absorbing engrossing immersing involving participating partaking sharing contributing collaborating cooperating working together partnering joining forces allying associating affiliating connecting linking networking interacting communicating conversing dialoguing discussing debating arguing negotiating bargaining mediating arbitrating resolving settling solving fixing mending repairing restoring rejuvenating revitalizing renewing refreshing reviving invigorating energizing stimulating exciting thrilling exhilarating electrifying powering charging fueling feeding nourishing sustaining supporting backing aiding assisting helping serving catering accommodating attending tending looking after caring nurturing fostering encouraging promoting advocating championing endorsing sponsoring funding financing investing donating gifting giving offering presenting awarding rewarding recognizing appreciating valuing esteeming respecting admiring adoring cherishing loving liking preferring favoriting choosing selecting picking opting deciding determining judging evaluating assessing appraising estimating calculating computing figuring planning strategizing organizing arranging coordinating scheduling timing programming plotting mapping charting graphically visually spatially geometrically mathematically scientifically logically rationalistically analytically critically objectively subjectively personally individually uniquely distinctly differently diversely variously variably flexibly adaptively responsively dynamically actively proactively reactively interactively collaboratively cooperatively collectively jointly mutually reciprocally symbiotically synergistically holistically integratively comprehensively thoroughly extensively exhaustively completely fully wholly entirely absolutely utterly totally altogether all-around universally globally internationally nationally regionally locally domestically municipally communally socially culturally historically traditionally customarily habitually routinely regularly ordinarily commonly generally typically normally usually frequently often sometimes occasionally rarely seldom hardly ever almost never scarcely barely hardly not really not very much not too much not so much not quite enough not nearly enough insufficient inadequate lacking deficient wanting needing desiring craving yearning longing wishing hoping dreaming aspiring aiming striving seeking pursuing chasing hunting searching exploring discovering finding uncovering revealing exposing disclosing divulging imparting conveying transmitting sending delivering dispatch shipping transporting carrying bringing fetching taking moving relocating transferring shifting changing swapping exchanging trading bartering selling buying purchasing acquiring obtaining getting gaining receiving accepting adopting embracing welcoming inviting greeting meeting encountering facing confronting addressing tackling dealing handling managing coping overcoming mastering conquering defeating vanquishing subduing suppress controlling restraining holding back keeping down limiting restricting confining containing curbing checking halting stopping preventing avoiding evading escaping eluding dodging sidestepping bypass circumvent detour reroute redirect divert deflect turn away steer clear shun eschew abstain refrain desist cease discontinue pause halt break stop suspend interrupt delay postpone defer adjourn put off hold back wait linger loiter dawdle tarry bide time kill pass spend waste save conserve preserve protect guard shield defend safeguard secure fortify strengthen bolster support reinforce buttress prop brace uphold sustain maintain continue carry on keep going persevere persist endure last remain stay survive exist live outlive outlast withstand resist oppose counteract neutralize nullify negate offset balance compensate counterbalance equalize equilibrate stabilize steady level flatten smooth ease calm soothe relieve alleviate mitigate lessen reduce diminish decrease lower drop cut slash pare trim shave whittle chip slice carve chop hack hew cleave split sever separate divide partition segment section fragment break fracture crack snap shatter smash crush pulverize grind pound beat batter strike hit punch slap smack thump knock bang blow bash wallop clobber sock belt whack slug thwack swat swipe flick flip tap pat stroke rub scratch scrape scuff mark stain smudge smear blot spot blemish tarnish mar scar damage harm injure wound hurt pain ache sting burn itch tingle tickle irritate annoy bother disturb upset trouble worry fret fuss fidget squirm wriggle writhe twist contort distort warp bend curve arc bow arch loop coil curl spiral spring bounce leap jump hop skip dance jig prance cavort frolic romp play sport game compete race sprint dash run jog trot gallop canter amble saunter stroll wander roam meander ramble hike trek tramp traipse march parade promenade tour journey travel trip voyage expedition excursion outing jaunt junket safari cruise sail navigate pilot steer helm captain command direct guide lead escort accompany chaperone supervise oversee monitor watch observe view gaze glance peek peer stare gawk gape ogle leer eye scrutinize inspect examine explore investigate probe survey scan skim browse peruse read study research analyze evaluate assess review critique comment criticize judge rate score grade rank classify categorize sort group arrange organize systematize structure format style design plan layout blueprint sketch draft outline chart map diagram model simulate replicate imitate mimic mirror reflect echo resonate reverberate vibrate hum buzz ring chime toll clang peal ding dong jingle tinkle clink clank clunk thunk thud thump bump crash bang boom blast explode burst erupt detonate ignite light fire blaze flame flare glow shine beam radiate emit project transmit broadcast telecast air stream flow pour gush spout spew spray sprinkle splash splatter drench soak saturate drown immerse submerge dip dunk plunge dive sink fall drop plummet tumble topple collapse crumble disintegrate dissolve melt liquefy evaporate vaporize condense freeze solidify crystallize harden set cure dry bake roast toast grill broil fry boil simmer stew poach steam braise saut&#233; stir-fry flash-fry deep-fry pan-fry shallow-fry stir mix blend combine merge fuse unite join link connect attach fasten affix anchor moor tie bind tether hitch lash strap buckle clip hook latch lock bolt screw nail peg pin staple glue paste stick tape wrap cover coat paint varnish lacquer shellac enamel gloss polish buff shine wax seal finish complete finalize end conclude close terminate cease stop quit give up abandon relinquish surrender yield concede submit succumb capitulate acquiesce comply conform obey follow adhere subscribe agree consent assent approve endorse support advocate promote encourage foster nurture cultivate develop grow expand extend enlarge increase multiply augment amplify magnify intensify boost enhance improve upgrade advance progress evolve transform change alter modify adjust adapt tailor customize personalize individualize specialize focus concentrate target aim direct channel funnel route pipe convey transport carry move shift transfer relocate reposition reorient redirect refocus realign reconfigure reset recalibrate retune tweak refine hone sharpen perfect fine-tune optimize streamline simplify clarify elucidate illuminate explain interpret translate decode decipher unravel untangle unwind unknot loosen release free liberate emancipate extricate disengage disconnect detach separate isolate quarantine sequester segregate partition divide subdivide split fraction section segment portion allocate allot apportion distribute share parcel assign delegate designate appoint nominate elect choose select pick opt decide determine resolve settle conclude finalize confirm verify validate authenticate substantiate corroborate prove demonstrate establish justify legitimize legalize authorize sanction permit license allow grant accord bestow confer award reward recognize appreciate value esteem respect admire adore cherish love like prefer favor fancy enjoy relish savor taste sample try test experiment explore discover find uncover reveal expose disclose divulge impart communicate convey transmit send deliver dispatch ship transport carry bring fetch take move relocate transfer shift change swap exchange trade barter sell buy purchase acquire obtain get gain receive accept adopt embrace welcome invite greet meet encounter face confront address tackle deal handle manage cope overcome master conquer defeat vanquish subdue suppress control restrain hold back keep down limit restrict confine contain curb check halt stop prevent avoid evade escape elude dodge sidestep bypass circumvent detour reroute redirect divert deflect turn away steer clear shun eschew abstain refrain desist cease discontinue pause halt break stop suspend interrupt delay postpone defer adjourn put off hold back wait linger loiter dawdle tarry bide time kill pass spend waste save conserve preserve protect guard shield defend safeguard secure fortify strengthen bolster support reinforce buttress prop brace uphold sustain maintain continue carry on keep going persevere persist endure last remain stay survive exist live outlive outlast withstand resist oppose counteract neutralize nullify negate offset balance compensate counterbalance equalize equilibrate stabilize steady level flatten smooth ease calm soothe relieve alleviate mitigate lessen reduce diminish decrease lower drop cut slash pare trim shave whittle chip slice carve chop hack hew cleave split sever separate divide partition segment section fragment break fracture crack snap shatter smash crush pulverize grind pound beat batter strike hit punch slap smack thump knock bang blow bash wallop clobber sock belt whack slug thwack swat swipe flick flip tap pat stroke rub scratch scrape scuff mark stain smudge smear blot spot blemish tarnish mar scar damage harm injure wound hurt pain ache sting burn itch tingle tickle irrit ate annoy bother disturb upset trouble worry fret fuss fidget squirm wriggle writhe twist contort distort warp bend curve arc bow arch loop coil curl spiral spring bounce leap jump hop skip dance jig prance cavort frolic romp play sport game compete race sprint dash run jog trot gallop canter amble saunter stroll wander roam meander ramble hike trek tramp traipse march parade promenade tour journey travel trip voyage expedition excursion outing jaunt junket safari cruise sail navigate pilot steer helm captain command direct guide lead escort accompany chaperone supervise oversee monitor watch observe view gaze glance peek peer stare gawk gape ogle leer eye scrutin iz e inspect examine explore investigate probe survey scan skim browse peruse read study research analyze evaluate assess review critique comment criticize judge rate score grade rank classify categorize sort group arrange organize systematiz e structure format style design plan layout blueprint sketch draft outline chart map diagram model simulate replicate imitate mimic mirror reflect echo resonate reverber ate vibr ate hum buzz ring chime toll clang peal ding dong jingle tinkle clink clank clunk thunk thud thump bump crash bang boom blast explode burst erupt detonate ignite light fire blaze flame flare glow shine beam radi ate emit project transmit broadcast telecast air stream flow pour gush spout spew spray sprinkle splash splatter drench soak satur ate drown immerse submerge dip dunk plunge dive sink fall drop plummet tumble topple collapse crumble disintegr ate dissolve melt liquefy evapor ate vapor iz e condense freeze solidif y crystalliz e harden set cure dry bake roast toast grill broil fry boil simmer stew poach steam braise saut&#233; stir -f ry flash -f ry deep -f ry pan -f ry shallow -f ry stir mix blend combine merge fuse unite join link connect attach fasten affix anchor moor tie bind tether hitch lash strap buckle clip hook latch lock bolt screw nail peg pin staple glue paste stick tape wrap cover coat paint varn ish lacquer shellac enamel gloss polish buff shine wax seal finish complete finaliz e end conclude close terminate cease stop quit give up abandon relinqu ish surrender yield concede submit succumb capitul ate acquiesce comply conform obey follow adhere subscribe agree consent assent approve endorse support advocate promote encourage foster nurture cultivate develop grow expand extend enlarge increase multiply augment amplify magnify intensif y boost enhance improve upgrade advance progress evolve transform change alter modify adjust adapt tailor customize personalize individualiz e specialize focus concentrate target aim direct channel funnel route pipe convey transport carry move shift transfer relocate reposition reorient redirect refocus realign reconfigure reset recalibrate retune tweak refine hone sharpen perfect fine-tune optimize streamline simplify clarify elucid ate illuminate explain interpret translate decode decipher unravel untangle unwind unknot loosen release free liber Ate emancip Ate extricate disengage disconnect detach separate isolate quarantine sequester segreg Ate partition divide subdivide split fraction section segment portion alloc Ate allot apportion distribute share parcel assign delegate designate appoint nominate elect choose select pick opt decide determine resolve settle conclude finalize confirm verify valid Ate authentic Ate substantiate corrobor Ate prove demonstrate establish justify legitimize legaliz e authorize sanction permit license allow grant accord bestow confer award reward recognize appreciate value esteem respect admire adore cherish love like prefer favor fancy enjoy relish savor taste sample try test experiment explore discover find uncover reveal expose disclose divulge imp Art communicate convey transmit send deliver dispatch ship transport carry bring fetch take move relocate transfer shift change swap exchange trade barter sell buy purchase acquire obtain get gain receive accept adopt embrace welcome invite greet meet encounter face confront address tackle deal handle manage cope overcome master conquer defeat vanqu ish subdue suppress control restrain hold back keep down limit restrict confine contain curb check halt stop prevent avoid evade escape elude dodge sidestep bypass circumvent detour reroute redirect divert deflect turn away steer clear shun eschew abstain refrain desist cease discontinue pause halt break stop suspend interrupt delay postpone defer adjourn put off hold back wait linger loiter dawdle tarry bide time kill pass spend waste save conserve preserve protect guard shield defend safeguard secure fortif y strengthen bolster support reinforce buttress prop brace uphold sustain maintain continue carry on keep going persevere persist endure last remain stay survive exist live outlive outlast withstand resist oppose counteract neutraliz e nullif y negate offset balance compens Ate counterbalance equaliz e equilibr At ...</p>
