Product Code: 101133842

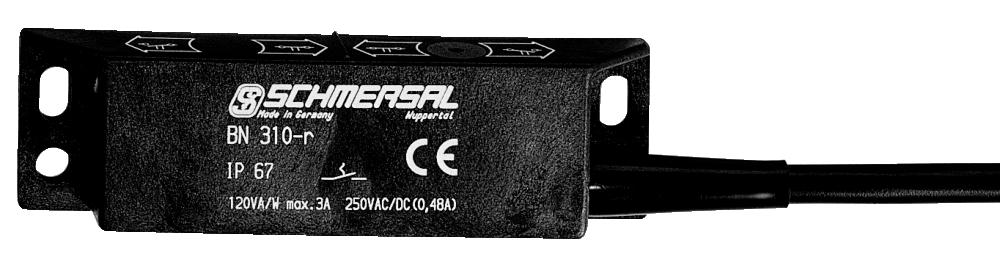

Explore the Schmersal BN310 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. This flat, rectangular switch features a thermoplastic enclosure with a terminal connector cable for easy installation. Engineered for side actuation, it operates with a normally open (NO) contact and is ideal for elevator applications. It offers an actuation distance range of 5 mm to 50 mm and can handle switching voltages up to 250 VAC or DC. With a maximum switching current of 3 A and a capacity of 120 W at 300 Hz, this switch ensures reliable performance. Reed contacts provide consistent operation within a temperature range of -25°C to 75°C. Note that actuators are sold separately. The BN310 guarantees protection with an IP67 rating according to IEC/EN 60529 standards, making it suitable for demanding environments.

Brand	SCHMERSAL
Actuator Type	Magnet
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-26-06
eCl@ss Number, Version 9.0	27-27-26-06
Enclosure Coating Material	Painted
Enclosure Material	Plastic, glass-fibre-reinforced
ETIM 6.0	EC001487
ETIM 7.0	EC000222
Gross Weight (g)	25
Height (mm)	11.3
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Maximum Fuse Rating	6 A gG D-fuse
Maximum Nominal Output Voltage AC (V)	250
Maximum Nominal Output Voltage DC (V)	250
Maximum Temperature (°C)	75
Minimum Actuating Speed (mm/min)	120
Minimum Ambient Temperature (°C)	0
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Minimum Positive Break Force (N)	19
Minimum Temperature (°C)	-25
Mounting Type	Threaded
Net Weight (g)	25
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Nominal Output Current (A)	3
Nominal Power (W)	120
Overvoltage Category	3
Pollution Degree	3
Protection Class of Operating Resource	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	112
Sensor Length (mm)	118
Series	BN310
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Terminal Type	Connector
Thermal Test Current (A)	16
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Width (mm)	22.5
Wire Cross-Section	13 AWG
Working Principle	Mechanical
