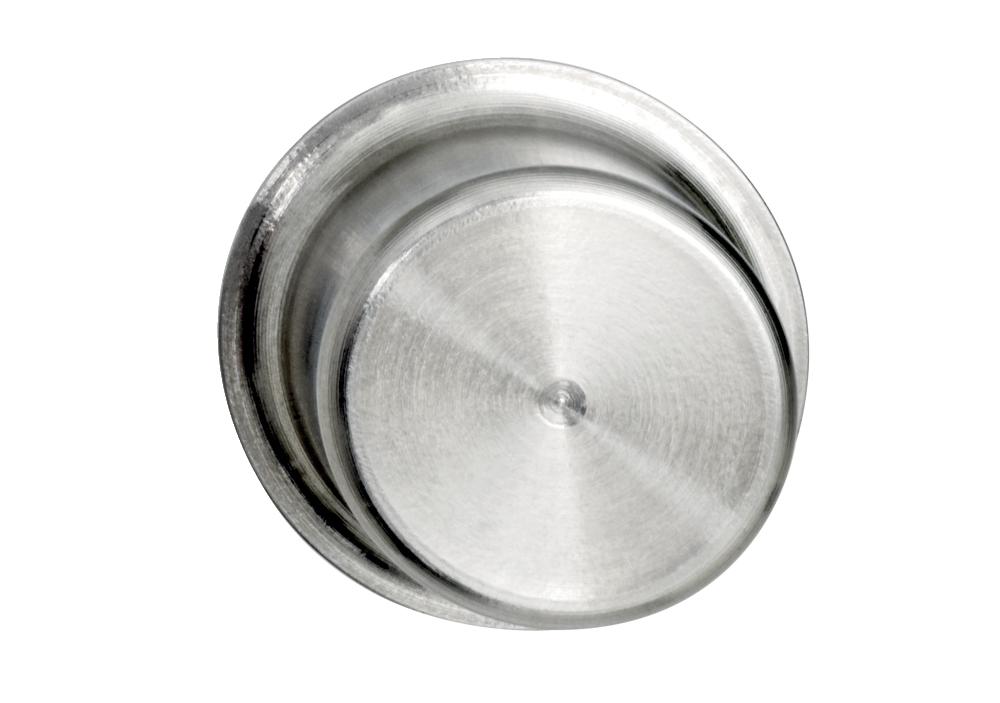

SCHMERSAL BP15SS SAFETY SENSOR 101139818

Product Code: 101139818

Enhance your machine safety with the Schmersal BP Series Safety Sensors, designed for reliability and durability. These sensors feature a robust stainless steel enclosure, ensuring longevity in harsh environments. The actuator boasts a diameter of 30 mm and a width of 14 mm, offering precise operation and compatibility with various applications. Trust in Schmersal's commitment to safety and quality for your machinery protection needs.

Technical Specifications

Brand SCHMERSAL
Actuator Type Magnet
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP00
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-06-09
eCl@ss Number, Version 9.0 27-27-24-04
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Gross Weight (g) 50
Height (mm) 100
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 65
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.5
Minimum Mechanical Life 5000000 Operations
Minimum Positive Break Force (N) 16
Mounting Type A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Net Weight (g) 30
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Overvoltage Category 3
Pollution Degree 3
Protection Class of Operating Resource 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 101.5
Sensor Length (mm) 30
Series BP
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Storage Temperature (°C) -25 to 70
Switching Element Normally open contact (NO)
Switching Principle Snap action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 11 AWG
Working Principle Electromechanical
