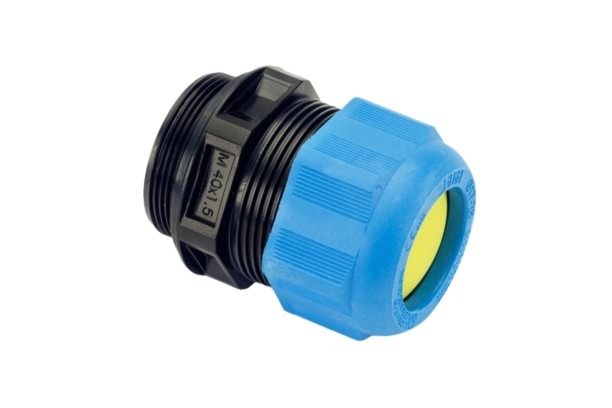

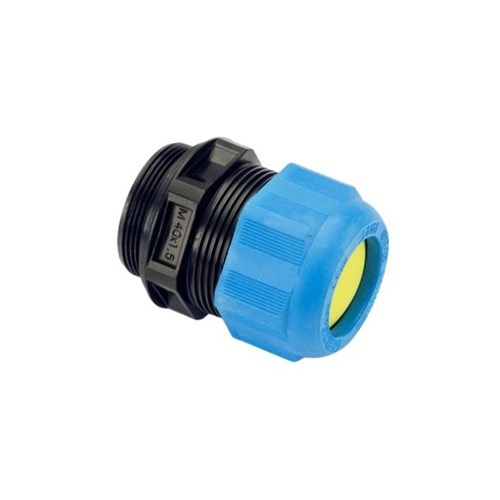

STAHL CABLE GLAND IP66 239195

Product Code: 239195

Cable Gland with Reduction Sealing Insert is a product that offers a high degree of protection with an IP66 rating. It is suitable for use at heights below 2000 m and can withstand temperatures ranging from -40 °C to +75 °C. The sealing material used for this product is EPDM profile seal. It has a clamping range of 2 to 9 mm, a total length between 37 to 43 mm, and features an M16 thread size. The weight of the product is 0.009 kg.

Technical Specifications

Brand STAHL
Ambient Temperature Range (°C) -40 to +75
Application Application range (zones) - 1, 2, 21, 22
Clamping Range (mm) 2 - 9
Colour Black
Degree of Protection IP66, Note : IP68 at 5 bar 30 min. (IP protection according to IEC/EN 60529)
Material Polyamide
Thread Size M16
