Brand	STAHL
Ambient Temperature Range (°C)	-40 to +55
Application	Application range (zones) - 2, 21, 22
Cable Cross Section (mm²)	4 - 6
Cable Type	Finely stranded, solid
Certifications	IECEx, ATEX
Colour	Enlosure - Light Grey (RAL 7035)
Conductor Cross Section (mm²)	2.5
Degree of Protection	IP66/IP67
Dimensions (mm)	184W x 125H x 700D
Enclosure Material	Polyester resin, Glass fibre reinforced
Lamp Type	LED
Lamp Wattage (W)	22
LED Colour	Neutral White
No. of Conductors	5
No. of Holes	3 x M20
No. of Lamps	1
Rated Frequency (Hz)	50 - 60
Rated Impact Resistance	IK10
Rated Operational Voltage AC (V)	100 - 240
Rated Operational Voltage DC (V)	110 - 250
Terminal Size (mm²)	6

Hazardous Area Lighting

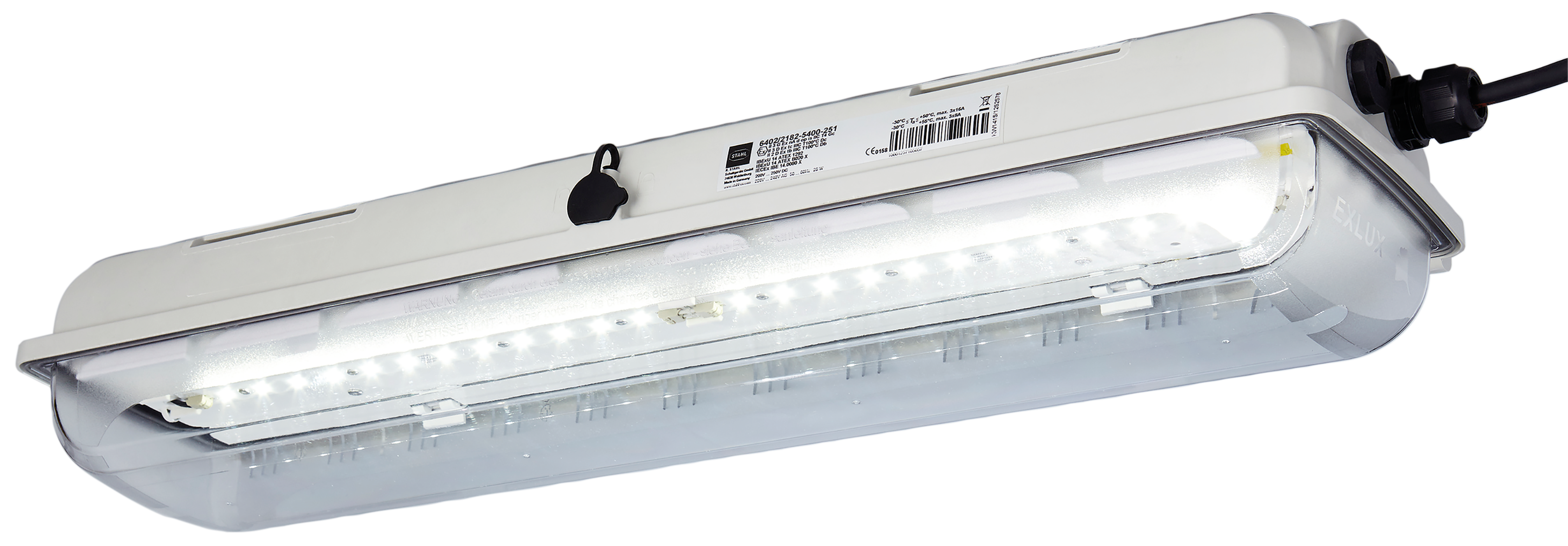

STAHL LINEAR LUMINAIRE WITH LED GRP NEUTRAL WHITE 271908
