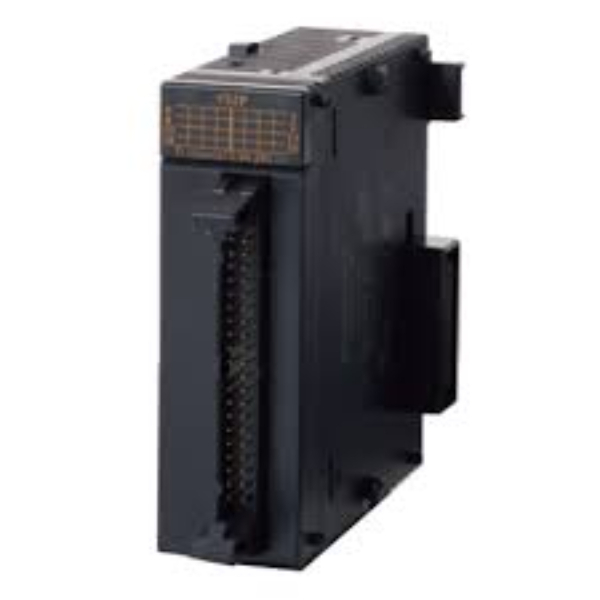

PANASONIC DIGITAL OUTPUT UNIT 32 POINTS AFP7Y32P

Product Code: AFP7Y32P

The FPZ series is a digital output unit with 32 points of transistor output. The output is sourced from PNP transistors. The load current for each point is 0.3 A, and the common load current is 3.2 A. The unit supports a connection method using MIL connectors.

Technical Specifications

Brand PANASONIC
Series FP7
Operational Temperature Range (°C) 0 to +55
Connection Type MIL Connector
Current Consumption (mA) 50
Insulation Resistance (MO) 100 at 500VDC
No. of Points 32
Rated Operational Voltage DC (V) 5 - 24
Dimensions (mm) 90H x 28W x 103D
