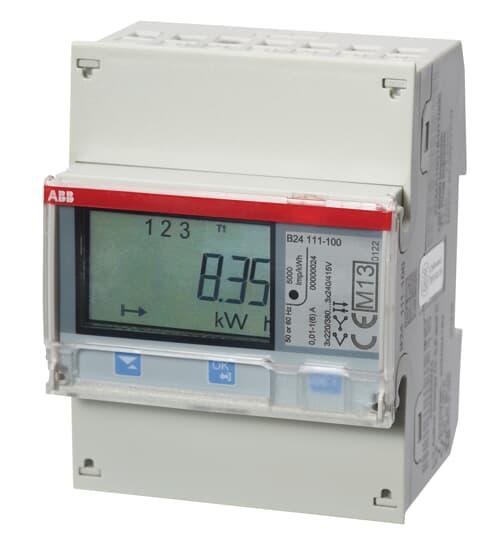

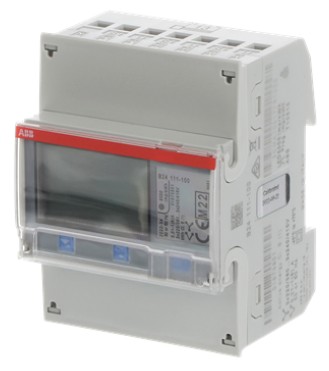

ABB B24 ADVANCED COMPACT DIN-RAIL METER 'STEEL', IR PORT,THREE-PHASE, 1A, 4P, IP20 B24-111-100

Product Code: B24-111-100

The B24-111 energy meter is a compact and advanced device designed for measuring energy consumption in three-phase systems. It has a CT connection with a maximum current of 5A and operates at 415VAC. With an accuracy class of 1, this energy meter provides precise measurements within the ranges of N-L 230-240V and L-L 380-415V. It features a backlit LCD display for easy reading and has a protection degree of IP20. The B24-111 energy meter also includes additional functionality in the form of a pulse output/IR port. This allows for convenient data transfer or connection to other devices. In terms of installation, this energy meter is four modules wide and can be easily mounted on a DIN rail. Its sub-group Steel functionality includes active energy measurement, class 1 accuracy, and the ability to generate pulse outputs or alarms as needed. Overall, the B24-111 energy meter offers engineers a reliable and efficient solution for monitoring energy usage in three-phase systems.

Technical Specifications

Accuracy Class Active Energy Class B MID
I/O Option 1 digital output
Meter Type Transformer connected
Net Weight (g) 250
No. of Digital Outputs 1
Number of Counter Positions 7
Output Type Pulse
Pulse Output Rate 1-999999
Sub-Function Steel
Brand ABB
Accuracy ±1%
Communication Interface IR port
Connection Type Transformer connected
Current Rating (A) 1
Degree of Protection IP20
Dimensions (mm) 70 X 26.5 X 65
Display Screen Type Digital
Enclosure Material Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Function Electricity meter
Mounting Type DIN-Rail
No. of Phases Three-phase
No. of Poles 4P
Power Consumption (W) 0.721
Rated Current (A) 1 Maximum 6
Rated Frequency (Hz) 50 / 60
Rated Voltage (V) 3x220-240
Rated Voltage AC (V) 415
Width in Number of Modular Spacings 4
