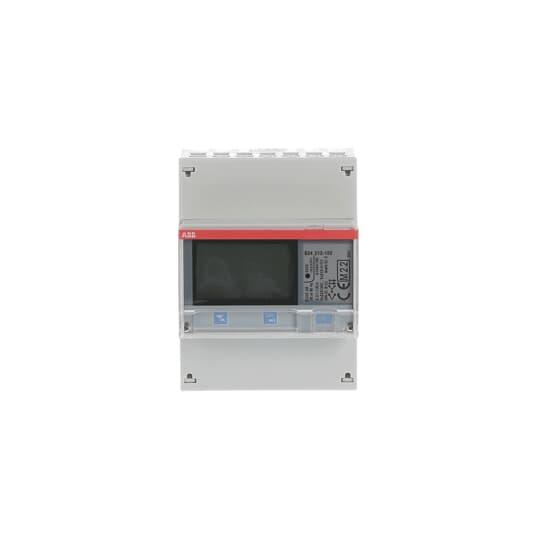

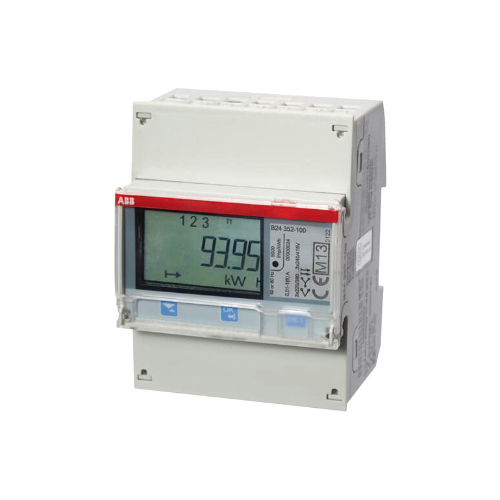

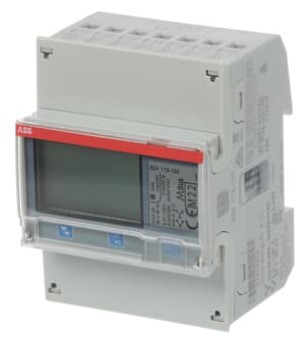

ABB B24 ADVANCED COMPACT DIN-RAIL METER 'BRONZE', MODBUSRS485, 3-PHASE, 1A, 4P, IP20 B24-212-100

Product Code: B24-212-100

The B24-212 energy meter is a compact and advanced device designed for measuring energy consumption in three-phase systems. It has a CT connection with a maximum current of 5A and operates at 415VAC. This energy meter features both pulse output and Modbus RTU communication, allowing for easy integration into existing systems. It has an accuracy class of 1, ensuring precise measurements. The measurement ranges for this meter are N-L 230-240V and L-L 380-415V, covering a wide range of voltage levels. The device is equipped with a backlit LCD display, making it easy to read the measured values. With its protection degree of IP20, this energy meter offers reliable performance even in harsh environments. It belongs to the sub-group Bronze functionality, which includes active energy, reactive energy, apparent energy, import/export of energy, and pulse output/alarm features. The B24-212 energy meter is designed to be mounted on a DIN rail and occupies four modules of space. Its compact design and comprehensive functionality make it an ideal choice for engineers looking for an efficient and accurate energy measurement solution.

Technical Specifications

Accuracy Class Active Energy Class B MID
I/O Option 1 digital output
Meter Type Transformer connected
Net Weight (g) 250
No. of Digital Outputs 1
Number of Counter Positions 7
Output Type Pulse
Pulse Output Rate 1-999999
Sub-Function Bronze
Brand ABB
Accuracy ±1%
Communication Modbus RTU
Communication Interface Modbus RS485
Connection Type Transformer connected
Current Rating (A) 1
Degree of Protection IP20
Dimensions (mm) 70 X 26.5 X 65
Display Screen Type Digital
Enclosure Material Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Function Electricity meter
Mounting Type DIN-Rail
No. of Phases Three-phase
No. of Poles 4P
Power Consumption (W) 0.721
Rated Current (A) 1 Maximum 6
Rated Frequency (Hz) 50 / 60
Rated Voltage (V) 3x220-240
Rated Voltage AC (V) 415
Width in Number of Modular Spacings 4
