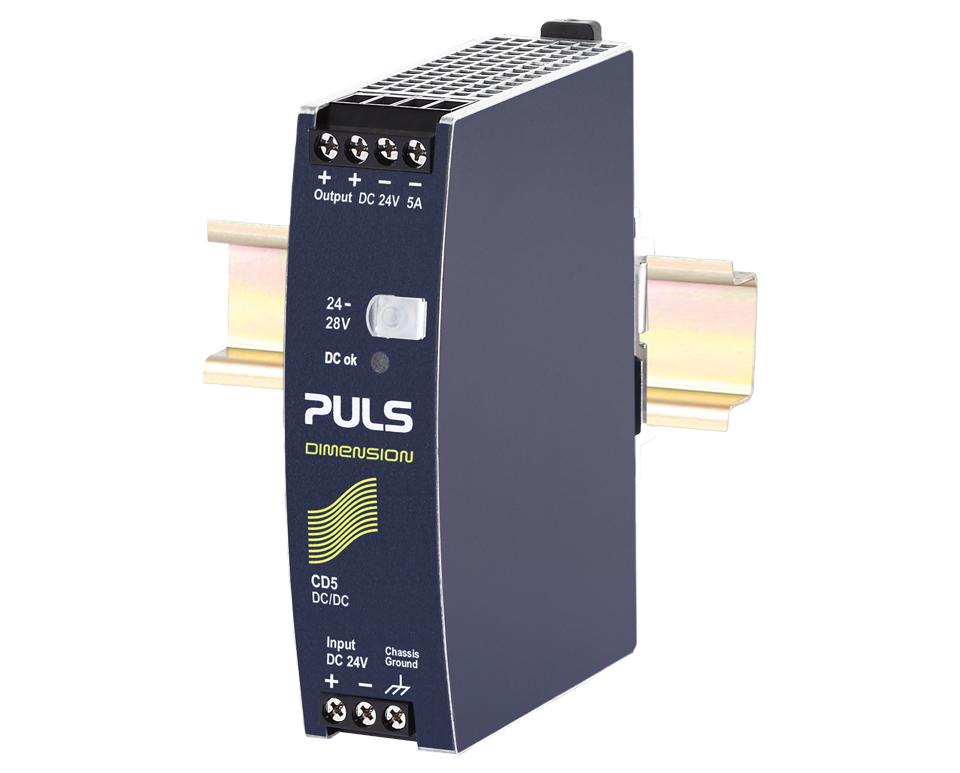

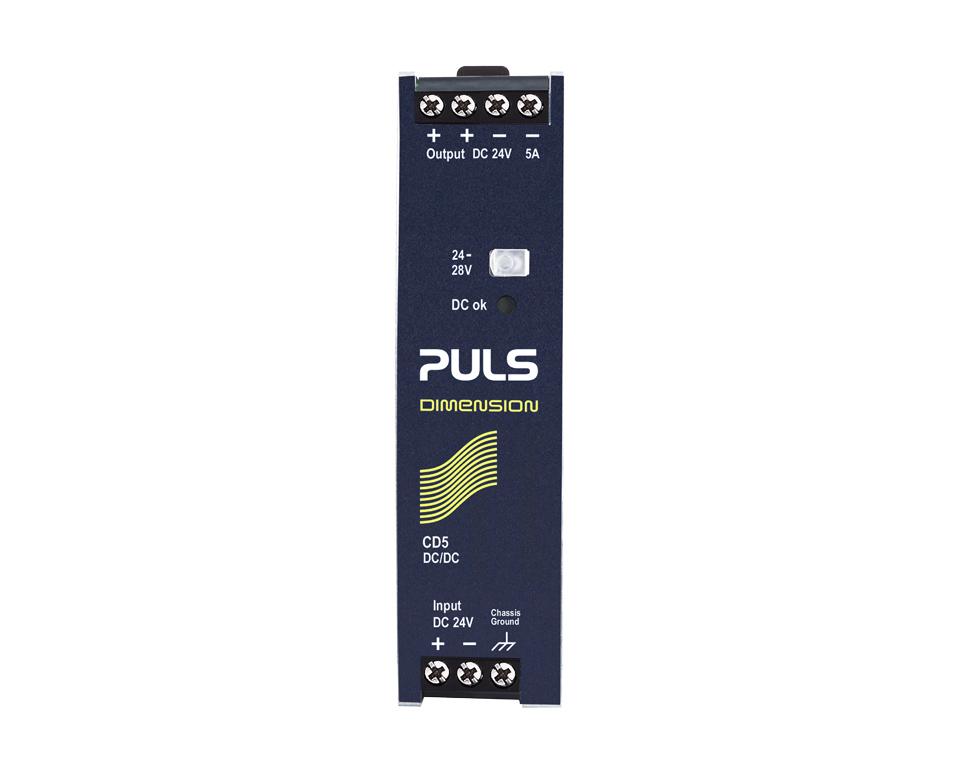

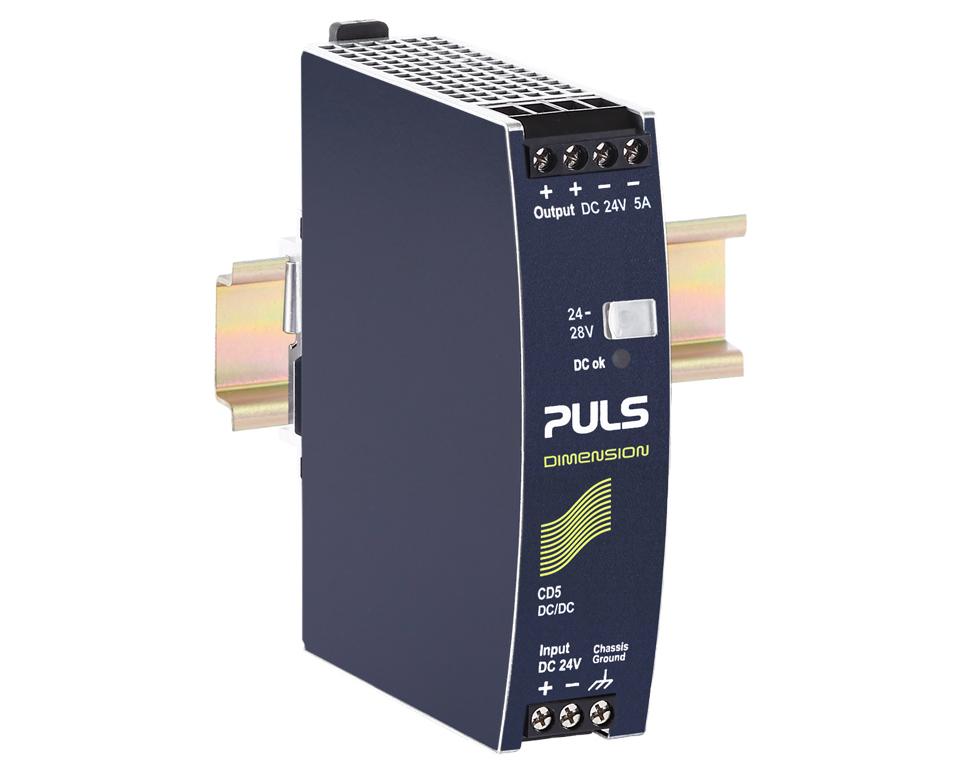

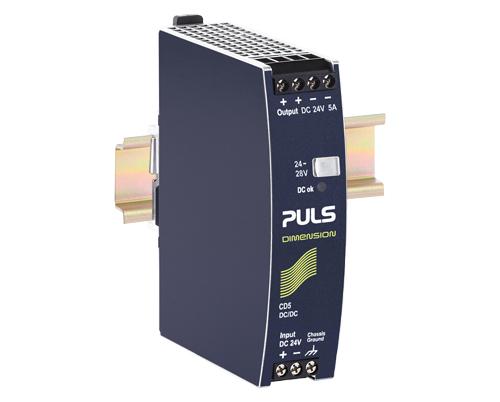

Product Code: CD5.241

This product features a 24V DC-input and an isolated 24V DC output. With an efficiency of up to 90.3%, it provides reliable power conversion. Its compact design with a width of only 32mm makes it suitable for space-constrained applications. It also offers a 20% output power reserve, ensuring stable performance even under heavy loads. Operating at temperatures ranging from -25°C to +60°C, it can deliver full power inVarious environments. The soft-start function minimizes inrush current surge, protecting the connected devices. Additionally, it has reverse input polarity protection for added safety.

Brand	PULS
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	3 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS02
Efficiency	90.30%
Input Voltage Range DC (V)	24
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	24
Output Current Range (A)	5 - 4.3
Output Power (W)	120
Output Voltage (V)	24-28
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Connection Type	Screw terminals
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 102D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	12.9
Range	DIMENSION
Rated Current (A)	5
Series	C series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, IEC 61010-1 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UL 61010-1 Canada, UL 61010-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	425
