Product Code: E65A36T250

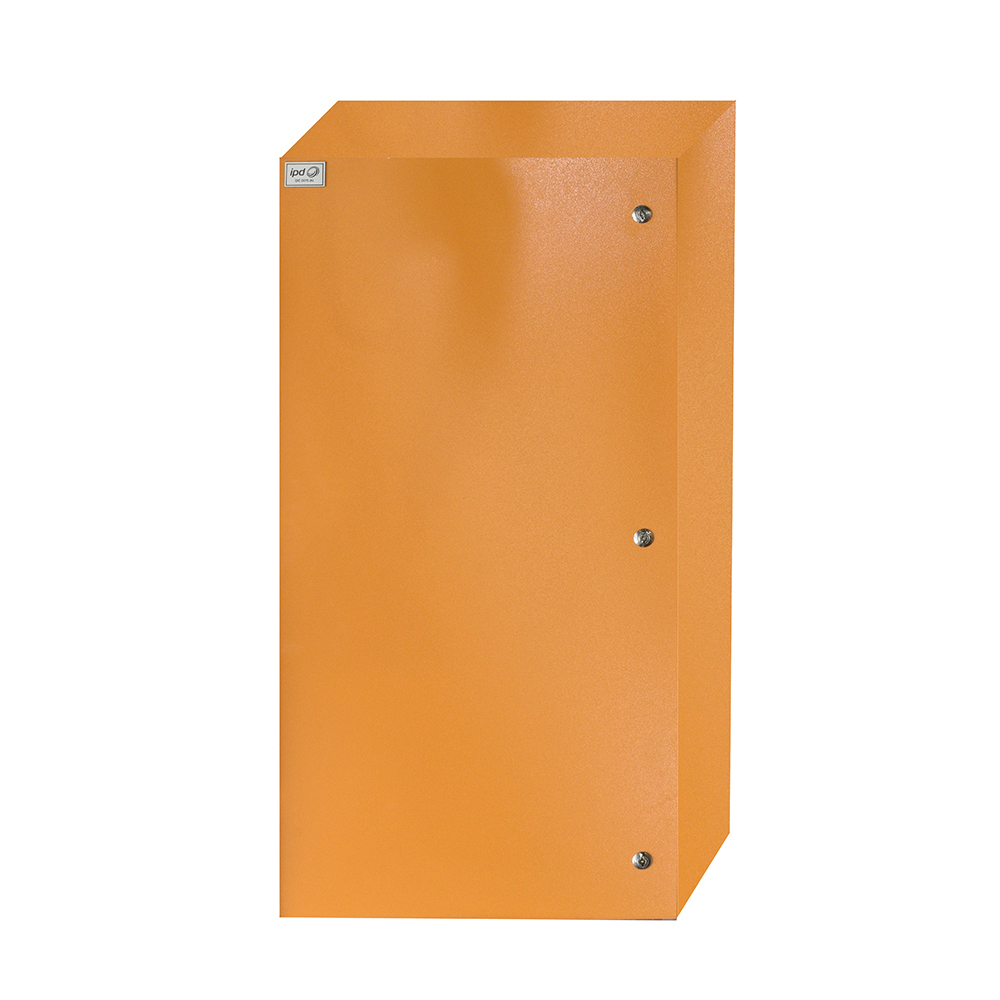

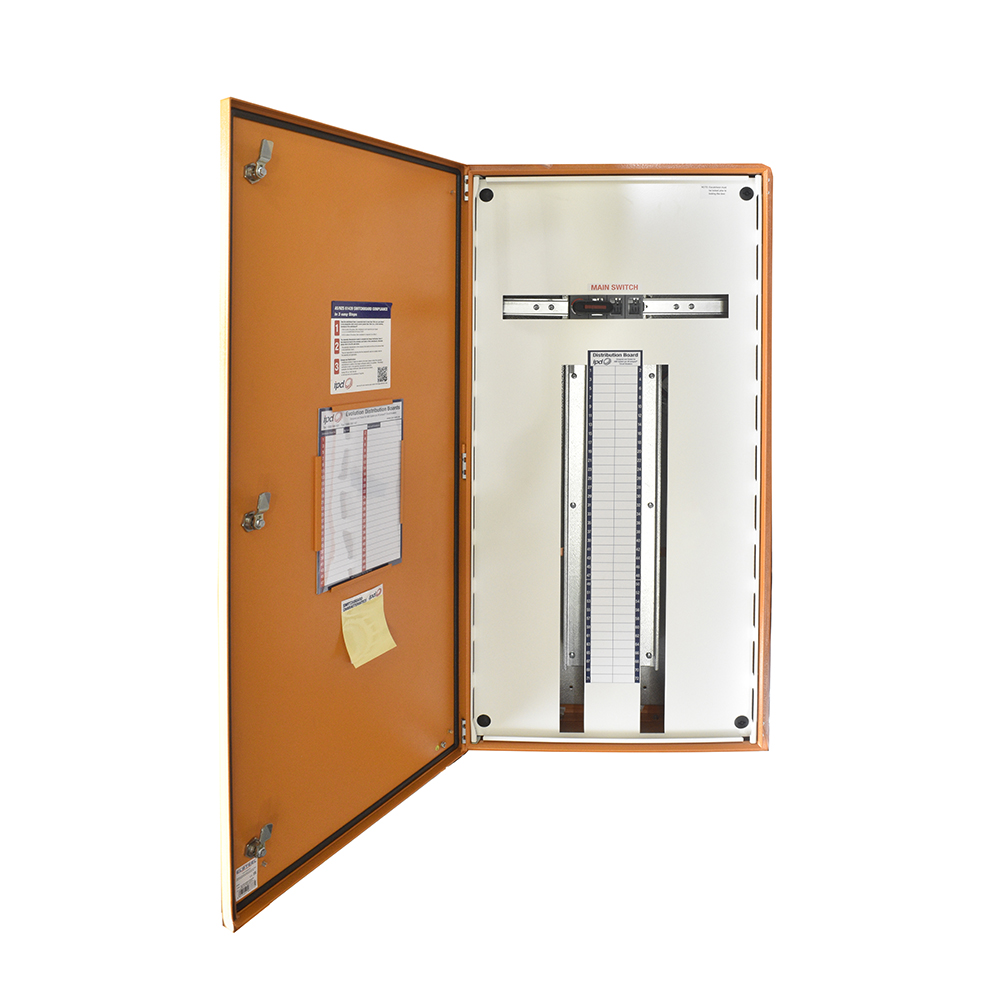

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in a vibrant RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure of the distribution board includes OT250 LBS, a full gland plate on the top and bottom, a 36P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 800H x 600W x 200Dmm.

Remove	Yes
Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	800H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	2
No. of Poles	36P
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65A36T250 DB 36P IP65 ORANGE + OT250 LBS

Product Code: E65A36T250
