Operating Humidity	10 to 95%RH (no condensation)
Display Screen Type	PCAP Glass Top HMI Design
Brand	IDEC
Mounting Type	Panel mount
Operational Temperature Range (°C)	-20 to 55
Storage Temperature Range (°C)	-20 to +70
Communication	Remote Access, FTP, Email, Mobile App and Capactom Web Page

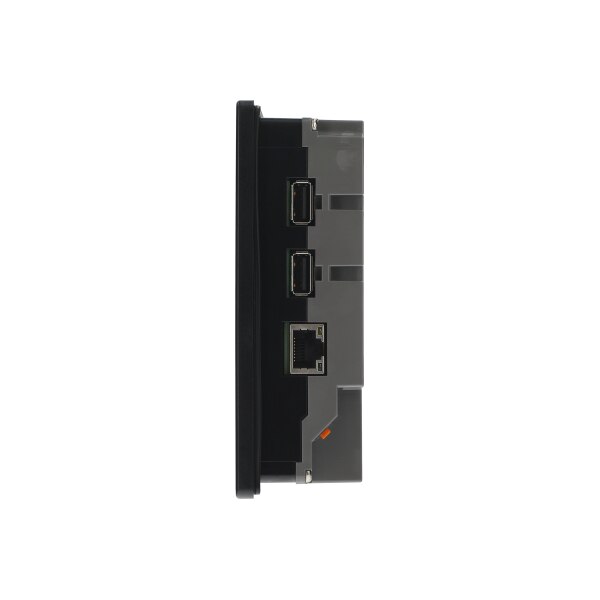

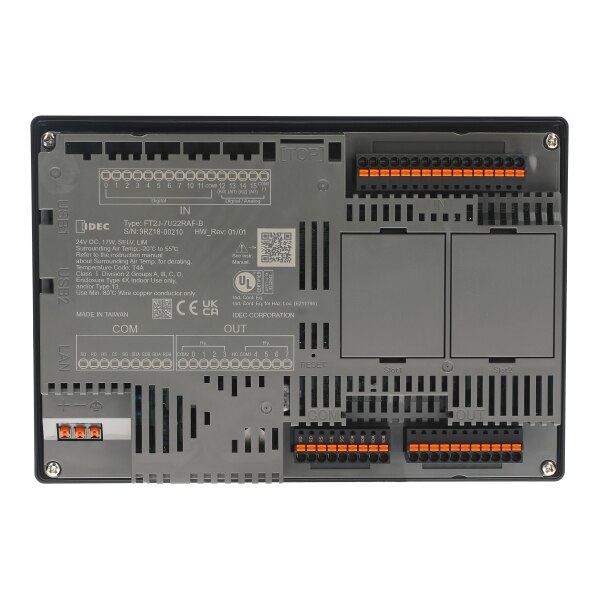

Communication Interface	Serial interface (RS232C, RS422/485), Ethernet, USB
Controller Type	PID & PWM
Display Screen	7-inch wide TFT color LCD 65,536 colors
Inrush Current (A)	40A maximum
No. of Analogue Inputs	4 point
No. of Digital Inputs	10 point (sink/source)
Output Type	8 point 2A Relay Output
Power Consumption (W)	17W maximum
Rated Voltage DC (V)	24
Screen Resolution	800 x 480 pixels
Sensor Type	RTD/Thermocouple
Dimensions (mm)	186W x 128H x 41.3D
Weight (g)	600
Degree of Protection	When panel thickness is between 1mm and 1.6mm: IP65F (IEC 60529) When panel thickness is between 1.6mm and 5mm: IP66F, IP67F (IEC 60529), TYPE 4X (indoor use only), TYPE 13
Pollution Degree	2
Approvals	UL61010-1 UL61010-2-201 UL121201 CSA C22.2 No.61010-1 CSA C22.2 No.61010-2-201 CSA C22.2 No.213

Programmable Logic Controllers & I/O

IDEC 7inch TFT 65K BLACK BEZEL CAPACITIVE TOUCH LCD FT2J-7U22RAF-B
