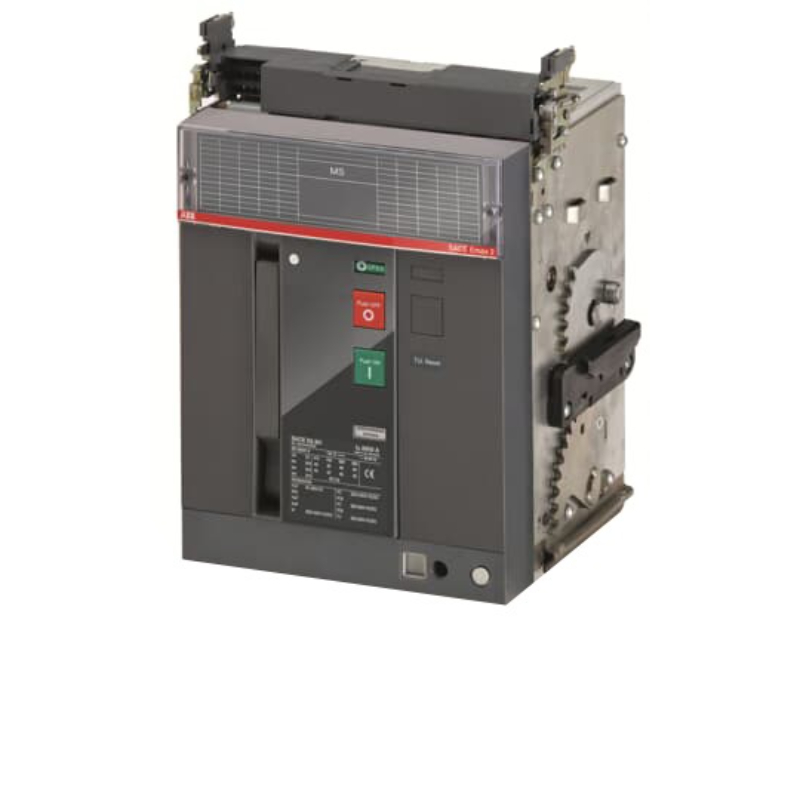

ABB E22N3NA20W ACB E2.2N 3P 66KA WITHDRAWABLE 2000A NON AUTO

Product Code: E22N3NA20W

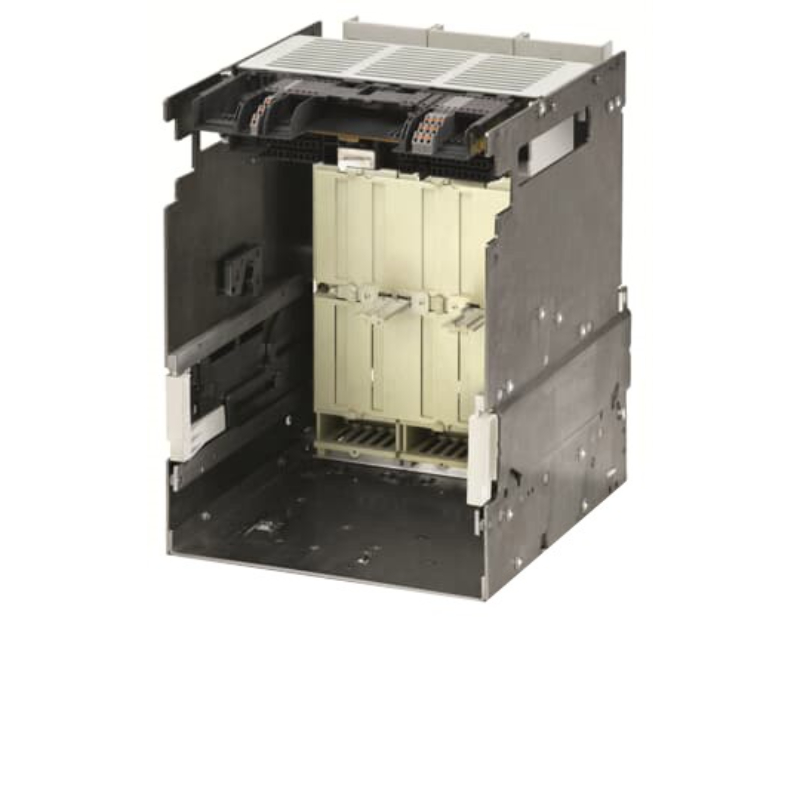

The ACB E2.2N is a 2000A, 3P circuit breaker with a 66kA short-circuit breaking capacity. It features a withdrawable design and does not have automatic operation. The terminal is HR-HR type and it comes complete with WMP+FP accessories.

Technical Specifications

Version Withdrawable
Brand ABB
AC Voltage (V) 690
Breaking Capacity 415V AC - Icu (kA) 66
Current Rating (A) 2000
No. of Poles 3P
Power Loss (W) 450
Rated Current (A) 2000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 66
Rated Uninterrupted Current - Iu (A) 2000
Terminal Type HR-HR
Size of Frame E2.2
Standards and Approvals IEC
Poles 3P
Breaking Capacity (kA) 66 @415V AC
Frame E2.2
Icw (kA/1s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 2000
Component Type Withdrawable
