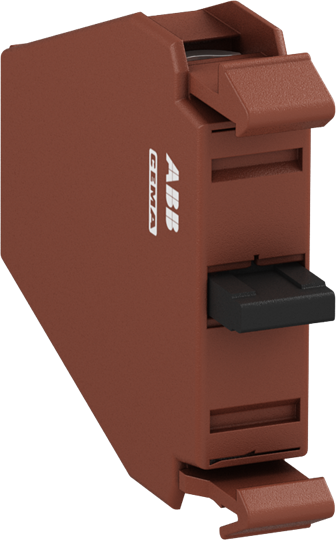

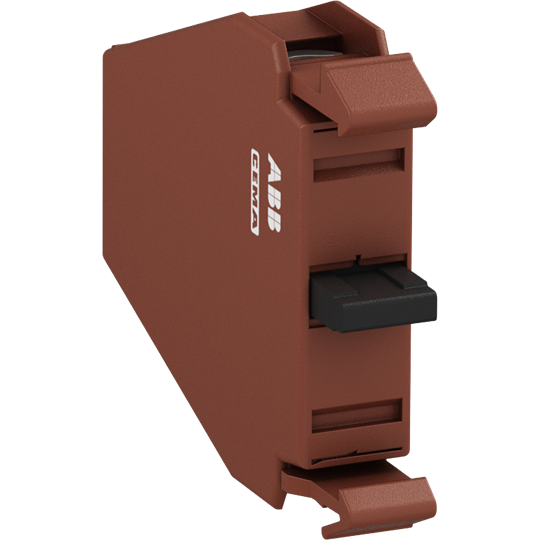

ABB CONTACT BLOCK DOUBLE FOR 3 AND 5 POS. HOLDER 2NO P9B20VN

Product Code: P9B20VN

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Colour Brown
Mounting Type Front Mount
Ambient Temperature Range (°C) -30 to 70
Storage Temperature Range (°C) -40 to 70
Brand ABB
Product Type Accessory
Connecting Capacity Flexible with Ferrule 1/2 x 0.75 - 2.5mm² Flexible with Insulated Ferrule 1/2 x 0.75 - 2.5mm² Flexible 1/2 x 0.75 - 2.5mm² Solid 1/2 x 0.75 - 2.5mm²
Connection Type Screw Clamp
No. of Normally-open Auxiliary Contacts 2
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 690
Terminal Type Screw
Tightening Torque (Nm) 0.9
Dimensions (mm) 9.6W x 39.9H x 48D
Weight (kg) 0.016
Wire Stripping Length (mm) 10
Degree of Protection Terminals: IP20
Pollution Degree 3

Description

The P9B20VN Contact Block is: Modular metal - Contact Block - Brown - Front mounting - 2 NO. This Contact Block is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
