Product Code: 942 170-999-004

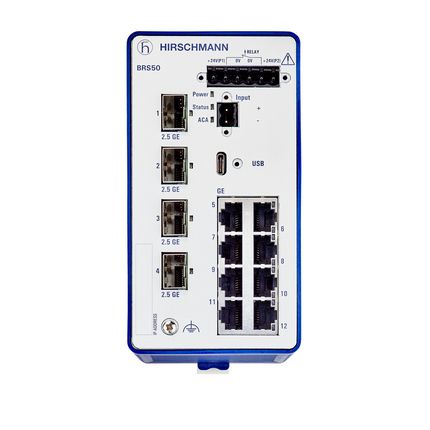

Optimize your industrial network performance with the Hirschmann BOBCAT Series Managed Industrial Switch. This robust all-Gigabit switch features 12 ports, including 8 RJ45 ports supporting 10/100/1000BASE-TX and 4 fiber ports with 100/1000Mbit/s capability. Dual uplinks are provided via 2 SFP slots each, accommodating both 100 and 1000 Mbit/s connections for flexible network configurations. Engineered for reliability in demanding environments, it operates between 0 to +60°C, supports a dual power input of 12 to 24 VDC, and maintains an energy-efficient operation at just 11 W. With an IP30 rating and DIN Rail mounting option, this switch is designed for seamless integration into various industrial settings. Trust in Hirschmann's network solutions expertise to keep your data flowing securely and efficiently.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
Brand	HIRSCHMANN
Series	BOBCAT
Mounting Type	DIN Rail
Operational Temperature Range (°C)	0 to +60
No. of 1GB Ports	12
No. of Ethernet Ports	8
No. of Fiber Ports	4
No. of Ports	8 x 10/100/1000BASE-TX RJ45, 4 x 100/1000 Fiber SFP
Nominal Power (W)	11
Power Consumption (W)	11
Rated Maximum Operational Voltage DC (V)	24
Rated Minimum Operational Voltage DC (V)	12
Rated Operational Voltage DC (V)	2 x 12 - 24
Switch Type	Switch - Managed
Dimensions (mm)	138H x 73W x 115D
Degree of Protection	IP30
Standards and Approvals	CE, FCC, EN61131, EN62368-1
