| Cable Cross Section - Solid/Stranded (mm²) |
Top/Bottom - 35/35 |
| Cable Cross Section - Flexible (mm²) |
Top/Bottom - 25/25 |
| Busbar Cross Section (mm²) |
Top/Bottom - 10/10 |
| Dimensions (mm) |
85H x 69D x 35W |
| Maximum Operational Voltage DC (V) |
500 |
| Maximum Operational Voltage AC (V) |
440 |
| Minimum Operational Voltage AC (V) |
12 |
| Minimum Operational Voltage DC (V) |
12 |
| No. of Poles |
2P |
| Pole Width (mm) |
17.5 |
| Power Loss (W) |
2.62/Pole |
| Rated Conditional Short-Circuit Current - Inc (kA) |
15 |
| Pollution Degree |
2 |
| Rated Current (A) |
25 |
| Rated Frequency (Hz) |
50/60 |
| Rated Insulation Voltage (V) |
484 |
| Rated Impulse Withstand Voltage (kV) |
4 |
| Rated Operational Voltage DC (V) |
440 |
| Rated Short-Circuit Capacity - Icn (kA) |
10 |
| Rated Operational Voltage AC (V) |
400 |
| Breaking Capacity 400V AC - Icu (kA) |
15 |
| Rated Voltage AC (V) |
400 |
| Poles |
2P |
| Breaking Capacity (kA) |
15 @400 V AC |
| Current Rating (A) |
25 |
| Family |
S200MUC |
| AC Voltage (V) |
400/415 |
| DC Voltage (V) |
440 |
| Icn-Rated Short Circuit Capacity (kA) |
10 |
| Inc-Rated Conditional Short Circuit Capacity (kA) |
15 |
| Impulse Withstand Voltage (kV/1.2µS) |
4 |

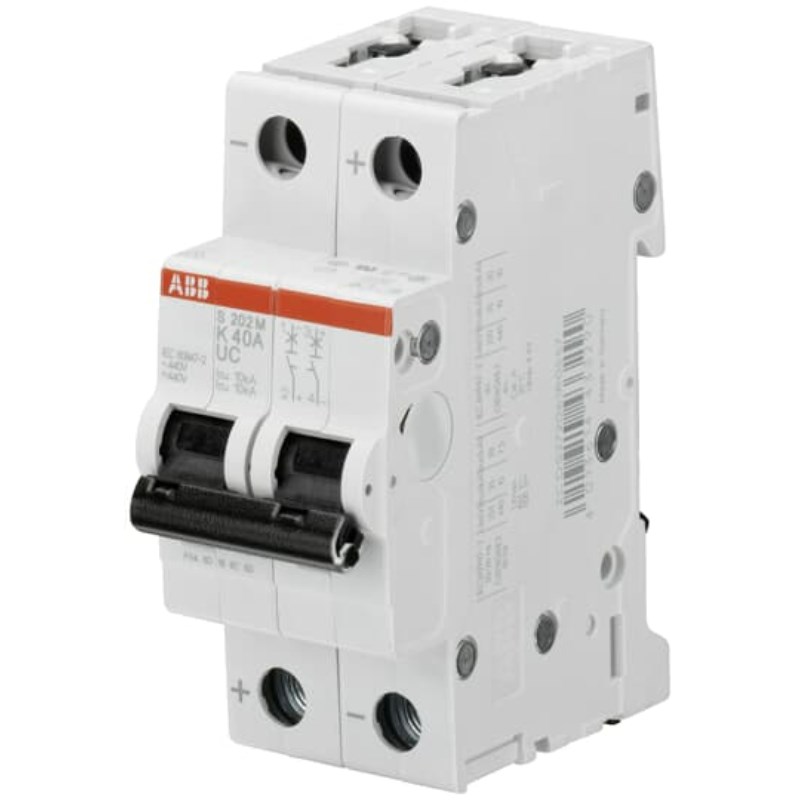

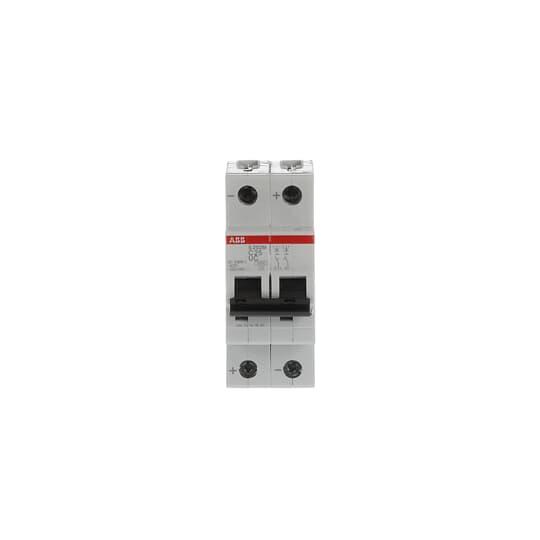

| Product Type |
Miniature Circuit Breaker |
| Brand |
ABB |
| Series |
S200MUC |
| Ambient Temperature |
-25 to 55 deg C Operation, -40 to 70 deg C Storage |
| Application |
Commercial and Industrial |
| Breaking Capacity |
15 kA at 400 VAC |
| Bulbar Cross Section |
10 sq-mm Top, 10 sq-mm Bottom |
| Cable Cross Section |
35 sq-mm Top, 35 sq-mm Bottom |
| Collection |
S200MUC |
| Curve Type |
C |
| Degree of Pollution |
IP2 |
| Degree of Protection |
IP20 |
| Depth |
69 mm |
| Electrical Durability |
20000 Cycles |
| Height |
85 mm |
| Housing Colour |
RAL 7035 Grey |
| Housing Material |
Insulation group I, RAL 7035 |
| Impulse Voltage |
4 kV |
| Mounting Type |
DIN Rail |
| Number of Poles |
2 |
| Pole Width |
17.5 mm |
| Power Loss |
2.62 W |
| Rated Current |
25 A |
| Rated Frequency |
50/60 Hz |
| Rated Impulse Withstand Voltage |
4 kV |
| Rated Insulation Voltage |
484 V |
| Rated Short Circuit Current |
15 kA |
| Rated Voltage |
400/415 VAC |
| Short Circuit Capacity |
10 kA |
| Standards and Approvals |
AS/NZS 60898-1, AS/NZS 60947-2, UL 1077, IEC/EN 60898-2, IEC/EN 60947-2 |
| Terminal Type |
Screw Clamp |
| Tightening Torque |
2.8 N-m |
| Trip Curve |
C Curve |
| Width |
35 mm |
