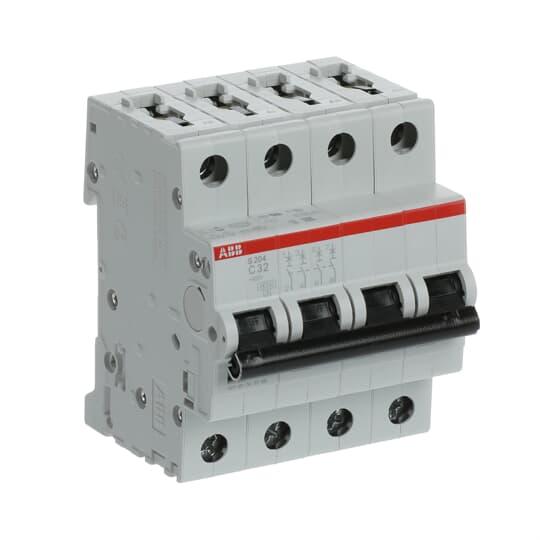

ABB S204C32 MCB 6kA 4P 32A 400VAC C CURVE INDUSTRIAL

Product Code: S204C32

  • - Protection against short circuit and thermal overload - Twin terminal for separate feeding of busbar and conductor - Contact Postion Indication - Captive screws - Finger safety with IP20 terminals - Pole configuration 4P
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Insulation Group II, RAL 7035
Mounting Type DIN Rail
Brand ABB
Product Type MCB
Series S200
AC Voltage (V) 400/415
Application Commercial and Industrial
Breaking Capacity 400V AC - Icu (kA) 10
Current Rating (A) 32
Curve Type C Curve
Family S200
Icn-Rated Short Circuit Capacity (kA) 6
Impulse Withstand Voltage (kV/1.2µS) 4
Maximum Operational Voltage AC (V) 440
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
No. of Poles 4P
Power Loss (W) 3.7/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 20
Rated Current (A) 32
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 440
Rated Operational Voltage AC (V) 400
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 400
Busbar Cross Section (mm²) Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Dimensions (mm) 85H x 69D x 70W
Trip Curve C Curve
Pole Width (mm) 17.5
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Poles 4P
Breaking Capacity (kA) 10 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 20

Description

The ABB Miniature Circuit Breaker is a reliable and efficient solution for commercial and industrial applications. With a 6kA breaking capacity at 400VAC and 10kA at 125VDC, it provides robust protection against short circuits and thermal overload. This 4-pole circuit breaker has a rating of 32A and features C curve technology. Trust ABB for high-quality circuit protection in your electrical systems.
