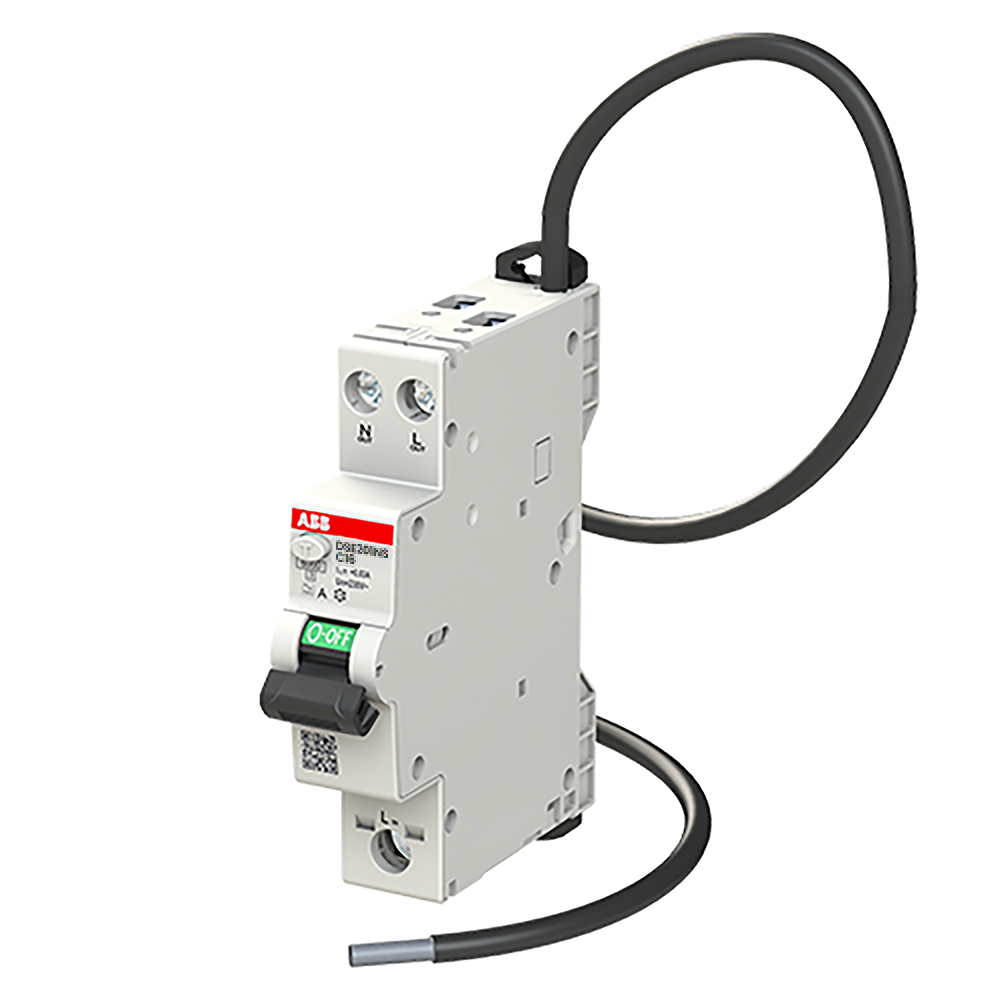

ABB DSE201C16A30NS Residual Current Circuit Breaker with Overcurrent Protection 6kA 1P+N-P 30mA 16A C-Curve TypeA IP20

Product Code: DSE201C16A30NS

  • RCBO with 16 A rated current
  • Breaking capacity of 6 kA
  • Compact size: 17.8 mm width
  • IP20 protection rating
  • Complies with IEC & AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1P+N
Pollution Degree 3
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Insulation Voltage DC (V) 440
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Residual Current (mA) 30
Rated Voltage AC (V) 230
Family DSE201NS
Neutral Switching Yes
Rated Impulse Withstand Voltage (1.2/50µs) 4
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Series DSE201NS
Ambient Temperature -25 to 55 deg C
Application Commercial and Industrial
Breaking Capacity 6 kA
Cable Cross Section 1-35 sq-mm 1-Solid Core, 1-25 sq-mm 4-Multi-Wired
Connecting Capacity Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20
Depth 70 mm
Dielectric Test Voltage 2.5 kV
Earthing Switch Type Undelayed
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Height 86 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group I, RAL 7035
Mounting Type DIN Rail
Number of Poles 1P+N
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 2.5 W
Power Supply Connection Bottom
Rated Current 16 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 30 mA
Rated Voltage 240 V
Residual Current Type Type A
Short Circuit Capacity 6 kA
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Clamp
Test Voltage 180-264 V
Weight 0.187 kg
Width 17.8 mm
Wire Stripping Length 13 mm

Description

The ABB RCBO is a compact combined MCB/RCD designed for commercial and industrial use. It has a breaking capacity of 6kA at 230VAC and is suitable for single-phase and neutral applications. With a current rating of 16A, it offers protection against short circuits, thermal overload, and earth leakage. The RCBO features a C curve trip characteristic and operates with a Type A sensitivity of 30mA. It also supports neutral switching functionality.
