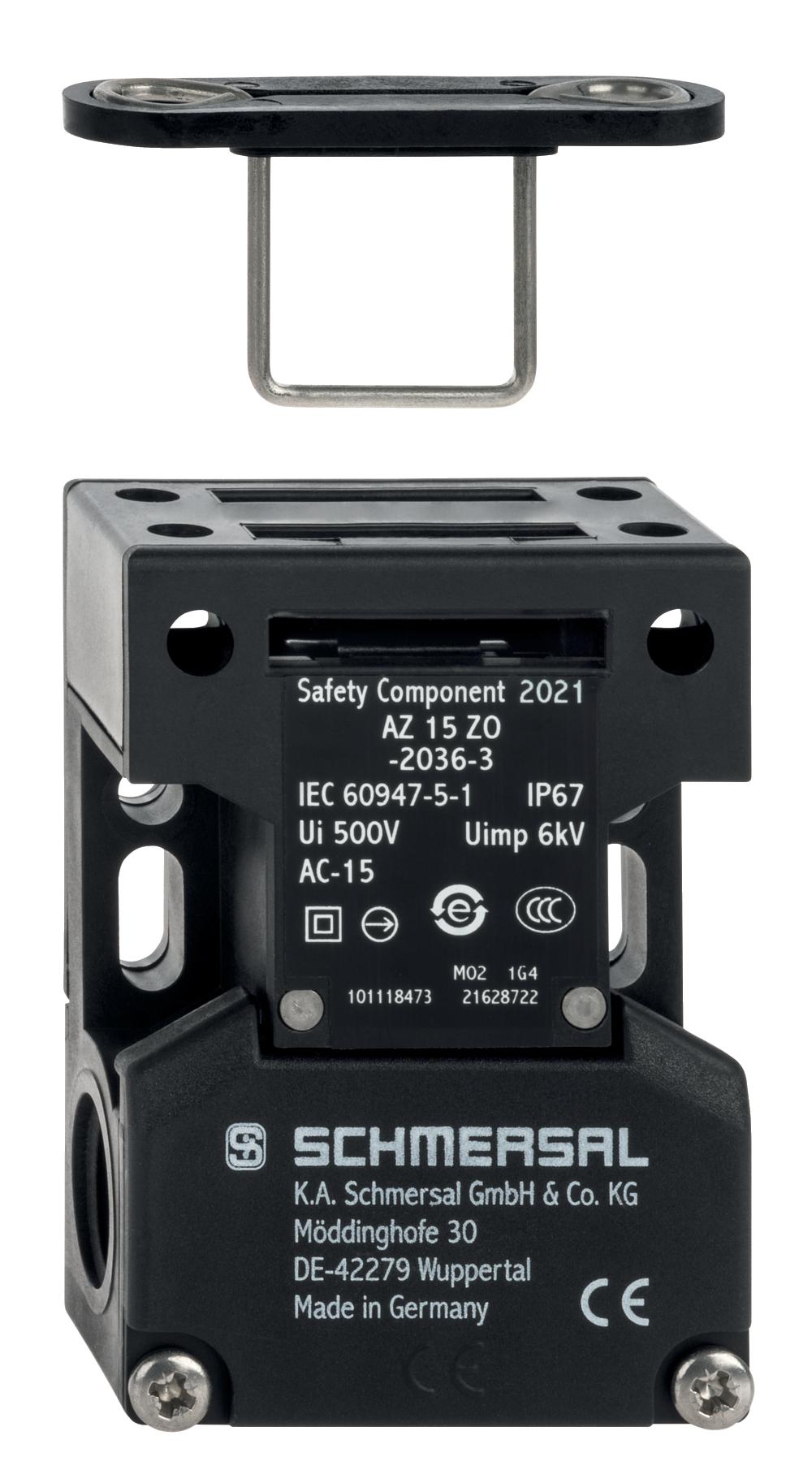

SCHMERSAL AZ15ZO-2036-3SAFETY SWITCHWITH SEPARATE ACTUATOR 101118473

Product Code: 101118473

Technical Specifications

Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 10
No. of Safety Contacts 1
Positive Break Travel (mm) 8
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Operational Current AC-15 (A) Safety Contacts - 4A
Rated Operational Current DC-13 (A) Safety Contacts - 4A
Sensor Height (mm) 75
Sensor Length (mm) 30
Sensor Width (mm) 52
Standards and Approvals EN ISO 13849-1
Switching Element Opener (NC)
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 10
