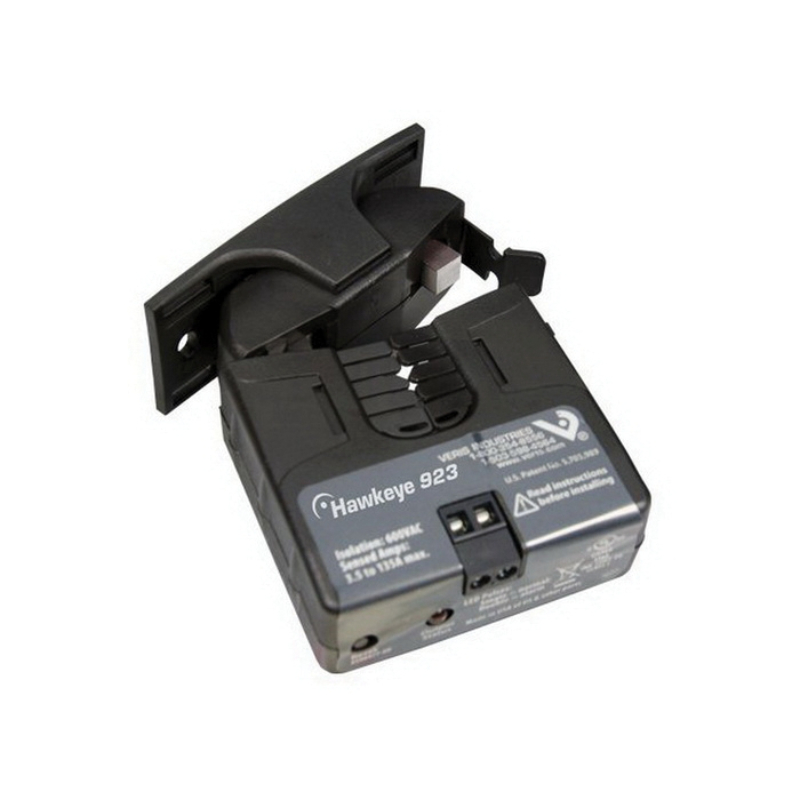

VERIS INDUSTRIES SPLIT-CORE CURRENT TRANSDUCER H923

Product Code: H923

Optimize your building automation systems with the Veris Industries H923 Series Current Transducer. Designed for precise AC current measurement, this transducer is ideal for load trending, motor control, and monitoring fan or pump status. It offers a versatile current measurement range with options of 0-30 A, 0-60 A, or 0-120 A to suit various applications. The output specification of 0-10 VDC ensures compatibility with most control systems. Its split-core design allows for easy installation without interrupting the circuit. Durable and reliable, it operates within a temperature range of -15 to 60°C. As part of the process sensors category, this transducer is an essential component for efficient energy management in any automated system.

Technical Specifications

Brand VERIS
Accuracy ±2% F.S. from 10% to 100%
Amperage Range (A) 0 to 20/100/150
Cable Cross Section (mm²) 0.2 to 2.1
Class of Insulation 300 Vac RMS
Operational Temperature Range (°C) -15 to +60
Output Type Analog
Output Voltage DC (V) 0 - 10
Pollution Degree 2
Rated Frequency (Hz) 50/60 (Nominal)
Response Time (s) 2
Series H923
Torque (Nm) 0.4-0.5 (Terminal Block)
Type Split-core
