Specifications

Contacts	1X (SPST, Double Make)
Coil Voltage AC (V)	100 - 120
No. of Poles	1
Operational Temperature Range (°C)	-25 to 55
Dimensions (mm)	54W x 50H x 39.5D
Power Consumption (VA)	1.7 - 2.5
Maximum Switching Current (A)	30
Weight (g)	90-135
Minimum Mechanical Life	1,000,000
Operating Humidity	5 to 85%
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Quick Connect Terminal
Product Type	Power Relay
Brand	IDEC
Contact Configuration	1 x (SPST, Double Make)
Contact Material	Ag Alloy
Degree of Protection	IP40
Humidity	5-85%
Mechanical Life	1000000 Operations
Mounting Type	DIN Rail
Number of Poles	1
Operating Time	30 ms
Operational Temperature	-25 to 55 deg C
Rated Current	30 A
Rated Power	1.7-2.5 VA
Rated Voltage	100-120 VAC
Shock Resistance	1000 ms
Standards and Approvals	CE, cRuUS, RoHS, VDE
Terminal Type	Quick Connect
Vibration Resistance	10-55 Hz
Weight	90-135 g

Description

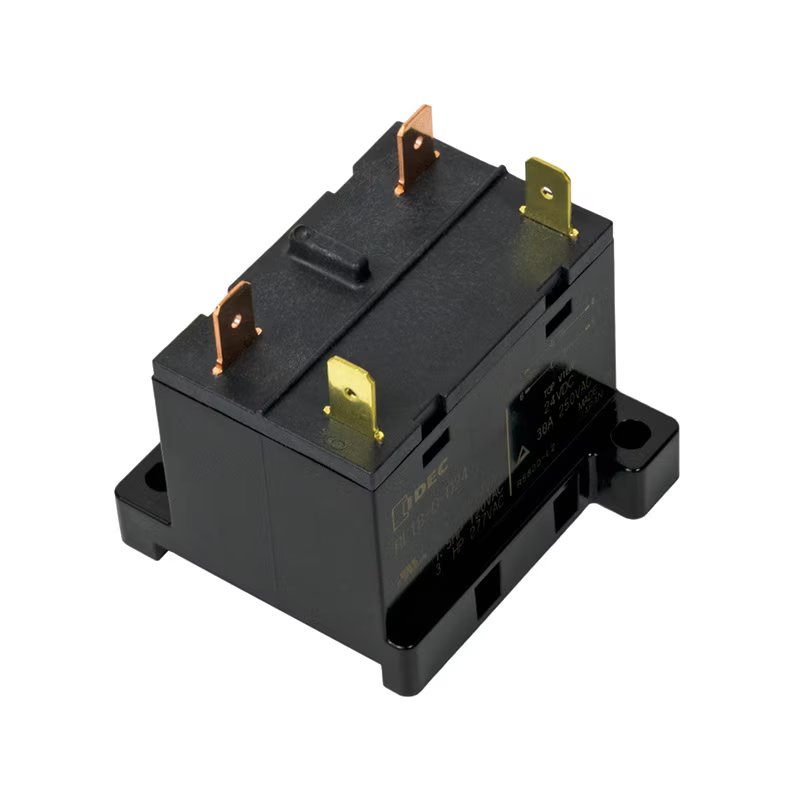

The IDEC RL1B-D-A100 is a 1-pole tab terminal DIN relay, operating at 100V AC. It features Double Make contacts, making it suitable for controlling motor, lighting, and heater loads. This relay is designed to meet the demands of industrial applications and is RoHS compliant, ensuring adherence to environmental standards.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

IDEC RL1B-D-A100 Power Relay 1x (SPST Double Make) 100-120VAC Coil 30A Quick Connect Terminal

Product Code: RL1B-D-A100
