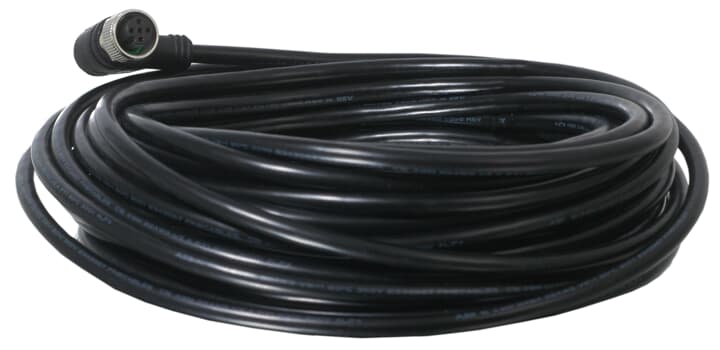

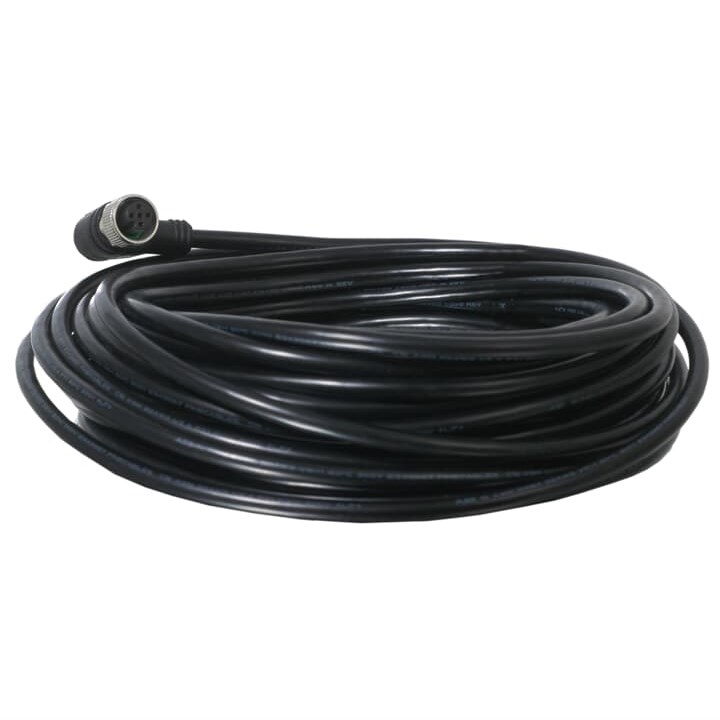

ABB M12-C101V2 Cable 24VAC 10m L Cable Black Jacket

Product Code: M12-C101V2

  • Rated for 24 VAC
  • Right angled M12-5 female connection
  • IP67, IP69K protection rating
  • Operates from -20 to 80°C
  • 10 m PVC jacketed cable
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Length (m) 10
Height (mm) 300
Length (mm) 40
Suitable For Eden
Weight (kg) 0.48 (Net)
Width (mm) 300
Product Type Cable
Brand ABB
Cable Length 10 m
Colour Black
Connection Type Right Angled M12-5 Female Device Side, Free End Field Side
Degree of Protection IP67, IP69K
Height 300 mm
Jacket Colour Black
Material PVC Jacket, Gold Plated Brass Pin and Socket
Operational Temperature -20 to 80 deg C
Rated Voltage 24 VAC
Suitable For Use With Eden
Weight 0.48 kg
Width 300 mm

Description

M12-C101V2 is a shielded cable with a right-angled M12-5 female connector and a free end. The five conductors have a cross section of 0.34 mm2. The jacket is made of black PVC. The length of the cable is 10 meters
