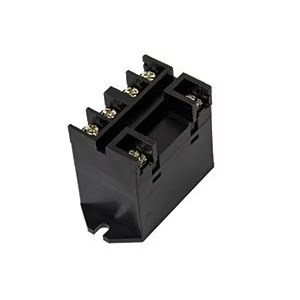

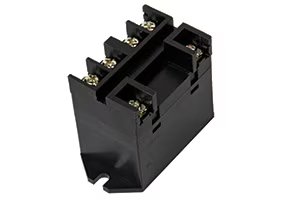

IDEC RL2N-T-A24 Power Relay 2 DPST 24VAC Coil 25A Screw Terminal

Product Code: RL2N-T-A24

  • Rated for 24 VAC, 25 A
  • Durable Ag Alloy contacts
  • Flange mount with screw terminals
  • Quick operation: 30 ms response time
  • Certified: CE, cRuUS, RoHS, VDE
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2X (DPST, Double Make)
Coil Voltage AC (V) 24
Dimensions (mm) 34W x 67H x 49D
No. of Poles 2
Operational Temperature Range (°C) -25 to 55
Power Consumption (VA) 1.7 - 2.5
Maximum Switching Current (A) 25
Weight (g) 90-135
Minimum Mechanical Life 1,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Screw Terminal
Product Type Power Relay
Brand IDEC
Contact Configuration 2 DPST
Contact Material Ag Alloy
Degree of Protection IP40
Humidity 5-85%
Mechanical Life 1000000 Operations
Mounting Type Flange
Number of Poles 2
Operating Time 30 ms
Operational Temperature -25 to 55 deg C
Rated Current 25 A
Rated Power 1.7-2.5 VA
Rated Voltage 24 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuUS, RoHS, VDE
Terminal Type Screw
Vibration Resistance 10-55 Hz
Weight 90-135 g

Description

The IDEC RL2N-T-A24 is a 24V AC relay designed for robust performance in controlling motor, lighting, and heater loads. This 2-pole screw terminal flange relay features Double Make contacts for reliable connectivity. It adheres to RoHS compliance, ensuring it meets environmental standards for hazardous substances. Ideal for industrial applications, this relay offers a dependable solution for power management and automation tasks.
