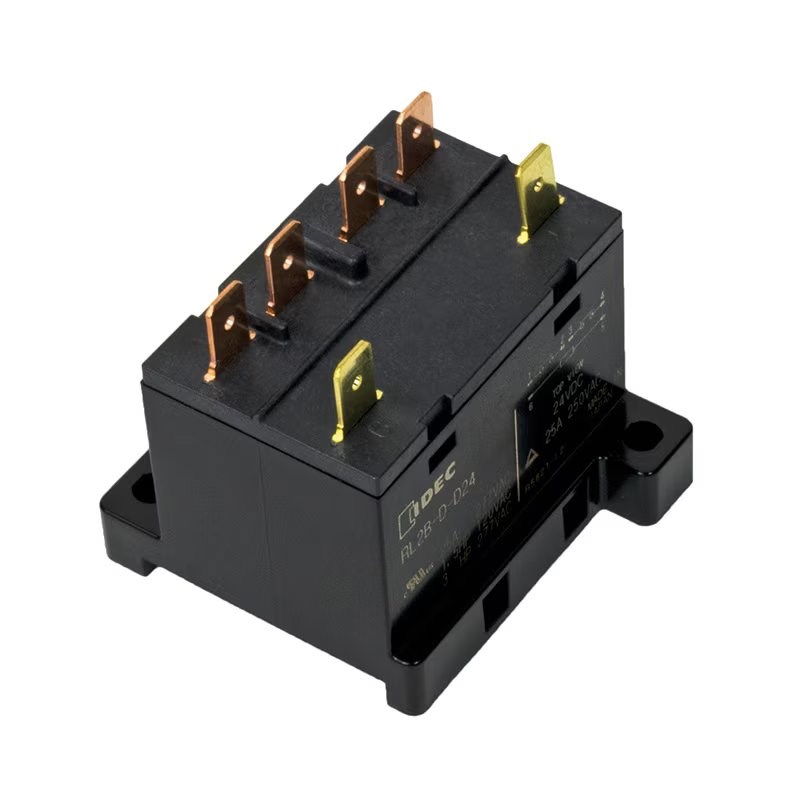

IDEC RL2B-D-A24 Power Relay 2 DPST 24VAC Coil 25A Quick Connect Terminal

Product Code: RL2B-D-A24

  • 24 VAC, 25 A rated power device
  • Quick connect terminals for easy setup
  • Durable with 1 million operations lifespan
  • IP40 protection ensures reliable performance
  • CE, cRuUS, RoHS, VDE certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2X (DPST, Double Make)
Coil Voltage AC (V) 24
No. of Poles 2
Operational Temperature Range (°C) -25 to 55
Dimensions (mm) 54W x 50H x 39.5D
Power Consumption (VA) 1.7 - 2.5
Maximum Switching Current (A) 25
Weight (g) 90-135
Minimum Mechanical Life 1,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Quick Connect Terminal
Product Type Power Relay
Brand IDEC
Contact Configuration 2 DPST
Contact Material Ag Alloy
Degree of Protection IP40
Humidity 5-85%
Mechanical Life 1000000 Operations
Mounting Type DIN Rail
Number of Poles 2
Operating Time 30 ms
Operational Temperature -25 to 55 deg C
Rated Current 25 A
Rated Power 1.7-2.5 VA
Rated Voltage 24 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuUS, RoHS, VDE
Terminal Type Quick Connect
Vibration Resistance 10-55 Hz
Weight 90-135 g

Description

The IDEC RL2B-D-A24 is a 24V AC relay designed for robust performance in controlling motor, lighting, and heater loads. It features double make contacts for reliable connectivity and switching. This 2-pole tab terminal DIN relay is also RoHS compliant, ensuring adherence to environmental standards. Its design facilitates easy integration into various industrial applications requiring high-quality electrical components.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
