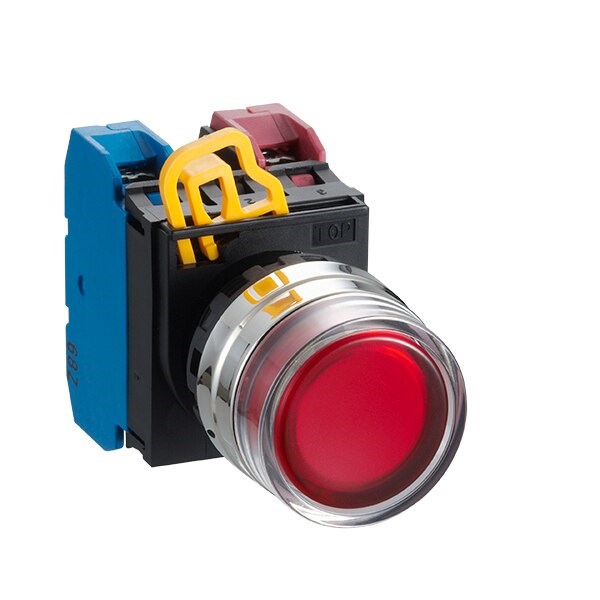

IDECYW4L-MF2E20QM3R Illuminated Pushbutton 22mm Extended w/Full Shroud Momentary Red 230/240VAC/DC 2NO

Product Code: YW4L-MF2E20QM3R

  • Illuminated pushbutton with red LED lamp
  • IP65 front protection, durable in harsh conditions
  • Extended actuator with full shroud for safety
  • Rated for 230/240 VAC/DC, 10 A continuous current
  • Mechanical life: up to 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 230/240
Operating Voltage AC (V) 230/240
No. of Normally-open Contacts 2
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended with Full Shroud
Bezel Material Metal
Colour Red
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Red
Lamp Type Built-in LED
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model Extended With Full Shroud Momentary- With LED Lamp
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 230/240 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW4L-MF2E20QM3R is an illuminated, momentary pushbutton designed for 230/240V applications. This compact and lightweight unit features a space-saving 10mm thick contact block with a removable operator for ease of use. It comes with a durable metal bezel and offers unibody pilot lights and key selector switches. The separate contact block design simplifies installation and maintenance procedures.
