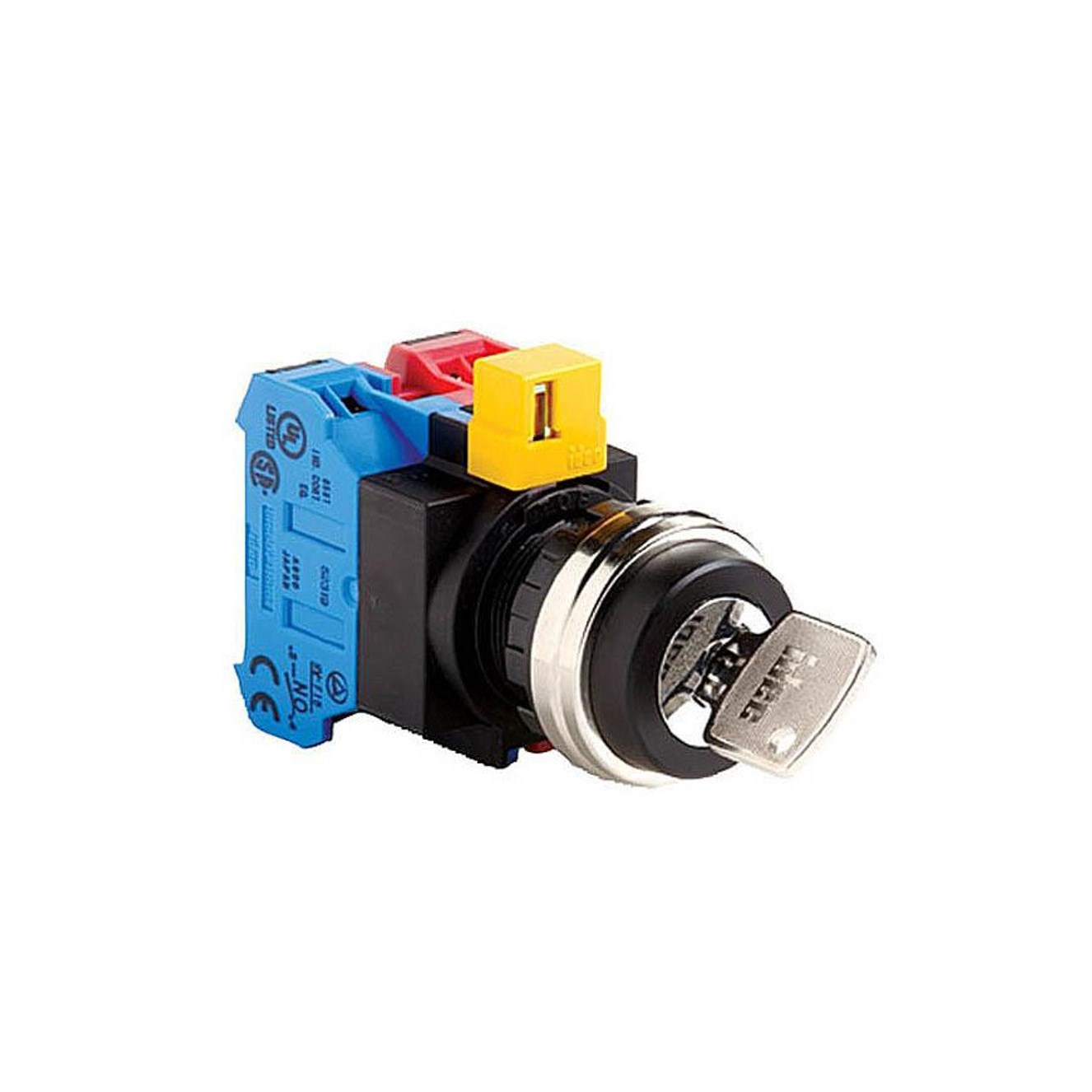

IDEC HW4K-2AF22 Selector Switch 2Position 2NO+2NC Knob Key Metal Screw Terminal

Product Code: HW4K-2AF22

  • 10A rated current for reliable performance
  • Operates at 50/60 Hz frequency
  • Wide temp range: -25 to 60°C
  • IP20/IP65 protection for durability
  • CE, CSA, UL approved for safety standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
No. of Normally-closed Contacts 2
Terminal Shape Screw Terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Metal
Contact Configuration 2NO+2NC
Degree of Protection IP20, IP65
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4K-2AF22 is a robust key switch featuring a metal bezel and a key handle for secure operation. This 2-position switch is maintained, meaning the selected position remains active until changed. The key can be removed in all positions, offering added security and control. Designed for 22mm mounting, it ensures easy installation and integration into various industrial applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
