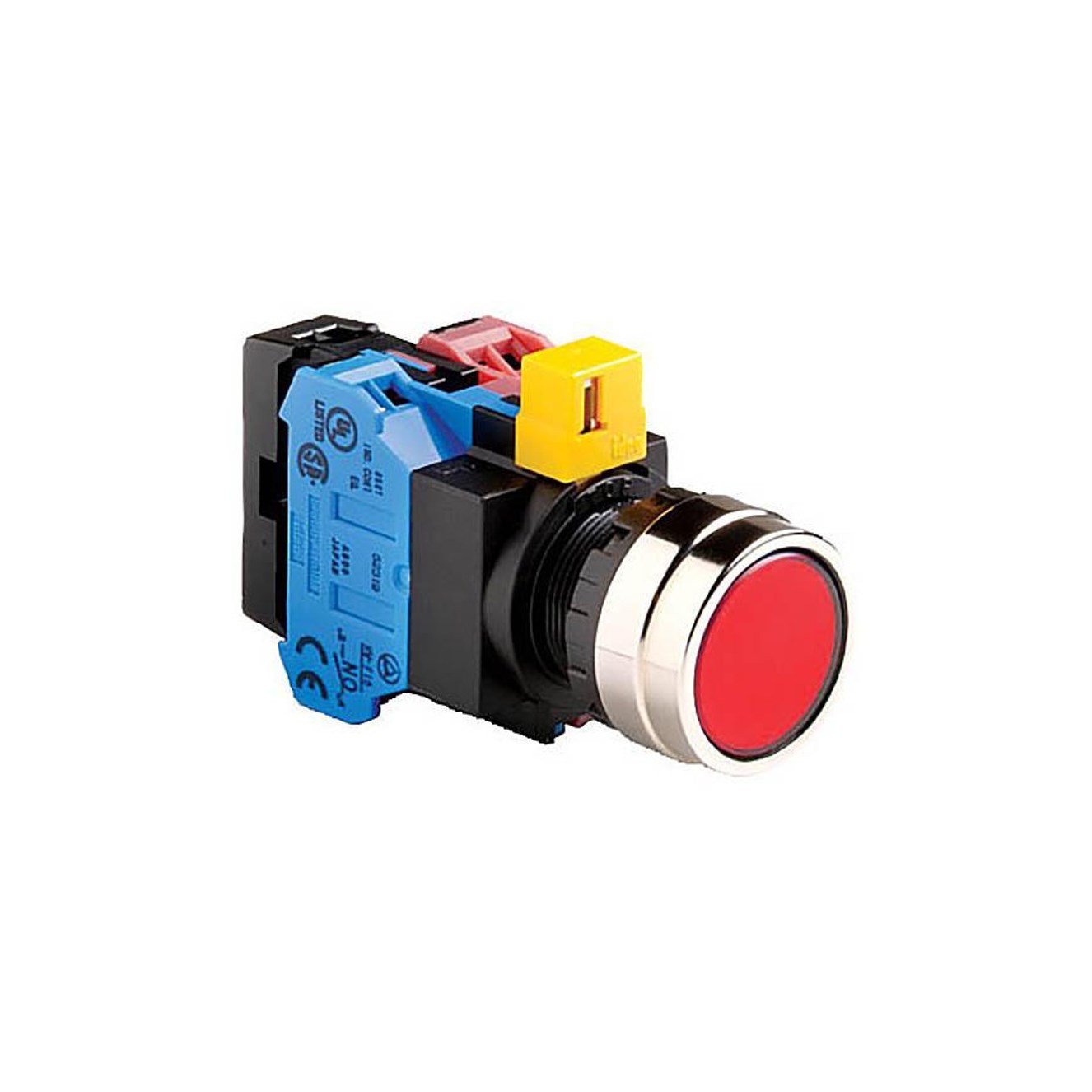

IDECHW4L-M1F01QD-R24 Illuminated Pushbutton 22mm Flush Momentary Red 24VAC/DC 1NC

Product Code: HW4L-M1F01QD-R24

  • Flush, illuminated pushbutton with red LED
  • Robust IP65 front protection rating
  • Durable 5 million operations lifespan
  • Compatible with 22 mm cutouts
  • Certified by UL, CE, CSA, and TUV
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton
Brand IDEC
Series HW
Actuator Type Flush
Bezel Material Metal
Bezel Shape Round
Contact Configuration 1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Circuit Full Voltage
Insulation Resistance 100 MOhm
Lamp Colour Red
Lamp Type LED
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified, TUV approved
Terminal Type Screw

Description

The IDEC HW4L-M1F01QD-R24 is an illuminated 22mm pushbutton designed for versatile connectivity, accepting ring, fork, ferrule terminals, and bare wires. This emergency stop button complies with EN418 standards for IEC-compliant positive action. It is recognized for safety and quality with UL listing, CSA certification, TUV approval, and CE marking, ensuring its suitability for a wide range of industrial applications.
