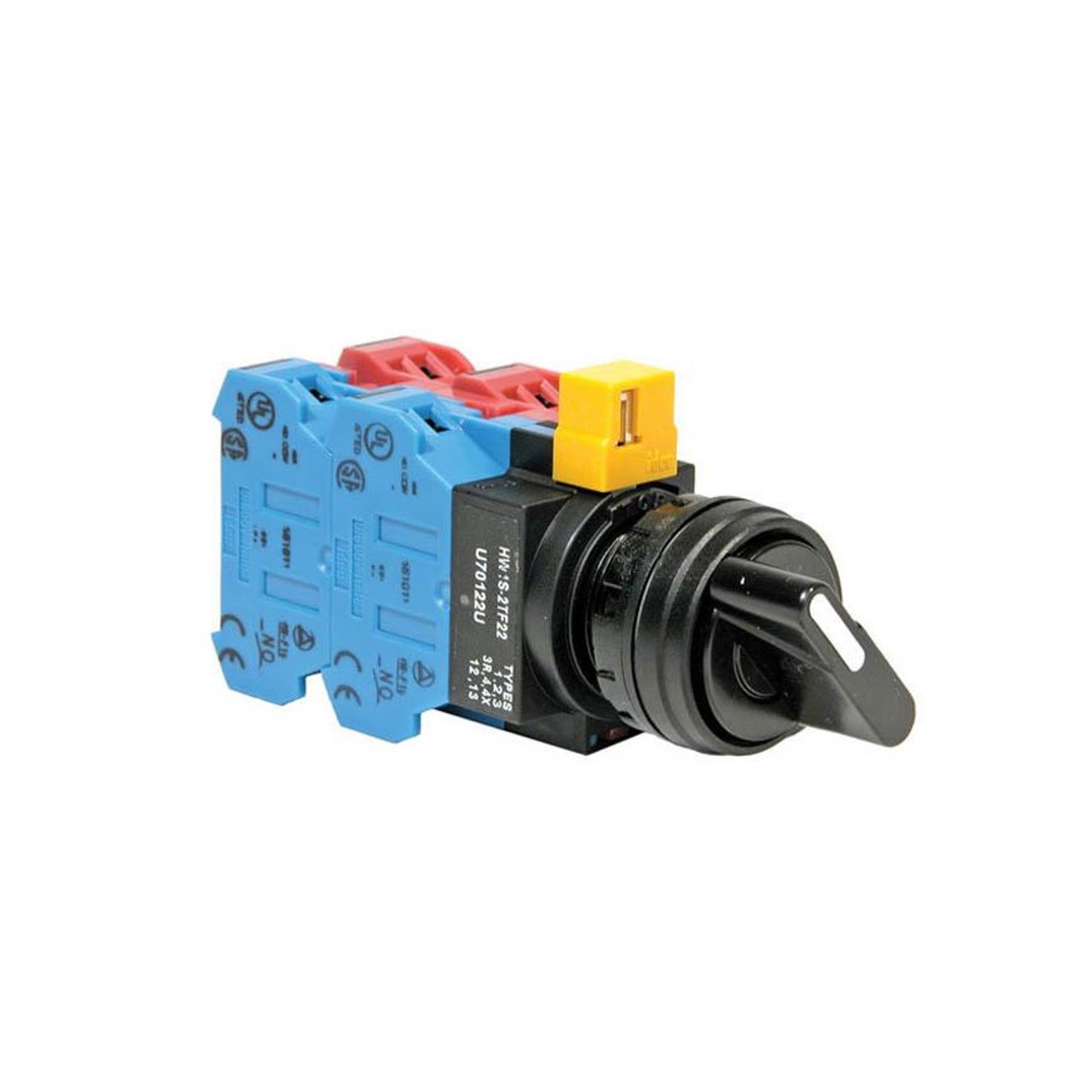

IDEC HW1S-33TF22 Selector Switch 3Position 2NO+2NC Illuminated Knob Plastic Screw Terminal

Product Code: HW1S-33TF22

  • Illuminated knob for easy visibility
  • Operates at 10 A, 50/60 Hz
  • IP20/IP65 protection rating
  • 22 mm mounting hole size
  • CE, CSA, TUV, UL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Selector Switch
Brand IDEC
Series HW
Bezel Material Plastic
Contact Configuration 2NO+2NC
Degree of Protection IP20, IP65
Illumination Illuminated
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, TUV, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1S-33TF22 is a versatile 22mm selector switch designed for ease of use and compatibility with various terminal types, including ring, fork, ferrule, and bare wires. This switch ensures safety with all E-Stops meeting EN418 standards for IEC compliant positive action. It is recognized for its reliability and quality with UL listing, CSA certification, TUV approval, and CE marking. Ideal for industrial applications requiring robust performance and secure operation.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
