Specifications

Lightning Impulse Current (10/350 µs) - Iimp (kA)	9
Nominal Discharge Current (8/20µs) - In (kA)	20
Reference No.	920249
Suitable For	Pluggable DIN Rail Mounted
Weight (kg)	0.03
Nominal Load Current AC - I? (A)	0.1
Mounting Method	On basic element
Earth Fault Protection	Other
Maximum Continuous Voltage DC (V)	180
Maximum Continuous Voltage AC (V)	127
Limiting Frequency (Hz)	50
Dimensions (mm)	6W x 7H x 2D

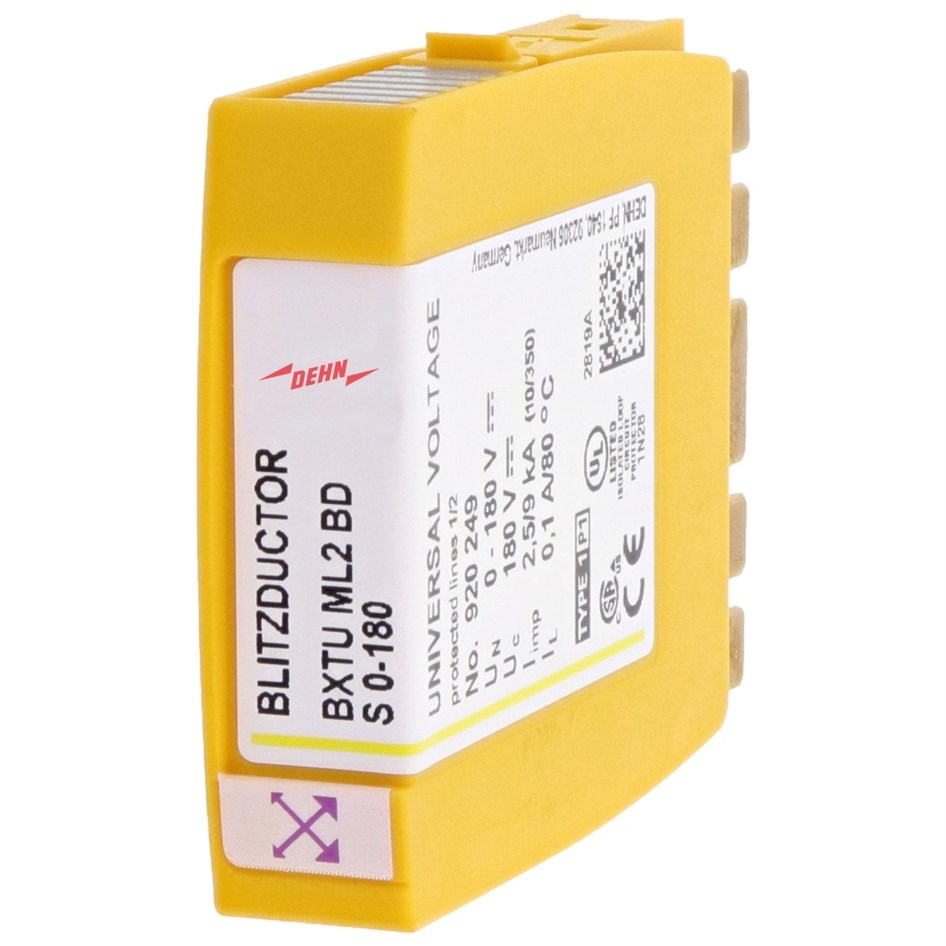

Product Type	Surge Arrester With Lifecheck
Brand	DEHN
Capacitance	<=80 pF (L-L), <=25 pF (Line-PG)
Colour	Yellow
Degree of Protection	IP20
Depth	2 mm
Height	7 mm
Lightning Impulse Current	2.5 kA (Per-Line), 9 kA (Total)
Material	Polyamide
Number of Poles	2
Operational Temperature	-40 to 80 deg C
Rated Current	100 mA
Rated Frequency	50 MHz
Rated Voltage	0-180 V
Resistance	<=10 Ohm, 7.5 Ohm Typical
SPD Class	Type 1
Standards and Approvals	IEC 61643-21, EN 61643-21, CSA, UL 497B, SIL
Voltage Protection Level	<=53V (L-L for Iimp D1 (UP)), <=550V (Line-PG) for Iimp C2/C3/D1 (UP)
Weight	23 g
Width	6 mm
