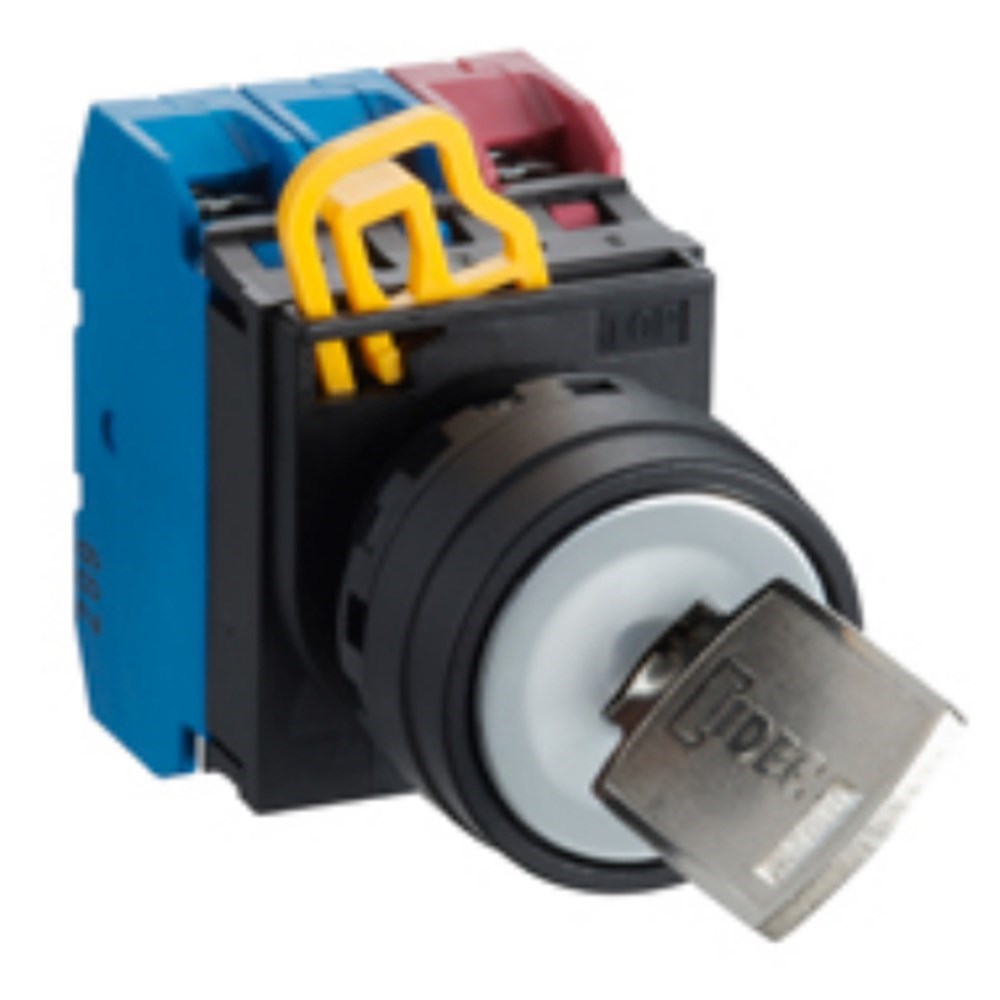

IDEC YW1K-33DE20 Selector Switch 3Position 2NO Key Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1K-33DE20

  • Key-operated, two-way spring return function
  • Durable plastic round bezel design
  • IP20/IP65 protection for versatile use
  • Rated insulation voltage of 600 V
  • Meets IEC, UL, and CSA standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
No. of Positions 3
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 600
Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Plastic
Bezel Shape Round
Bezel Type Plastic
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Two-Way Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1K-33DE20 Key Selector Switch is engineered for precise control with its 3-position return mechanism and 2-way functionality. It is equipped with 2 Normally Open (NO) contacts, ensuring consistent performance. Designed for a standard 22mm mounting, this switch from the YW series integrates seamlessly into various control panels and systems.
