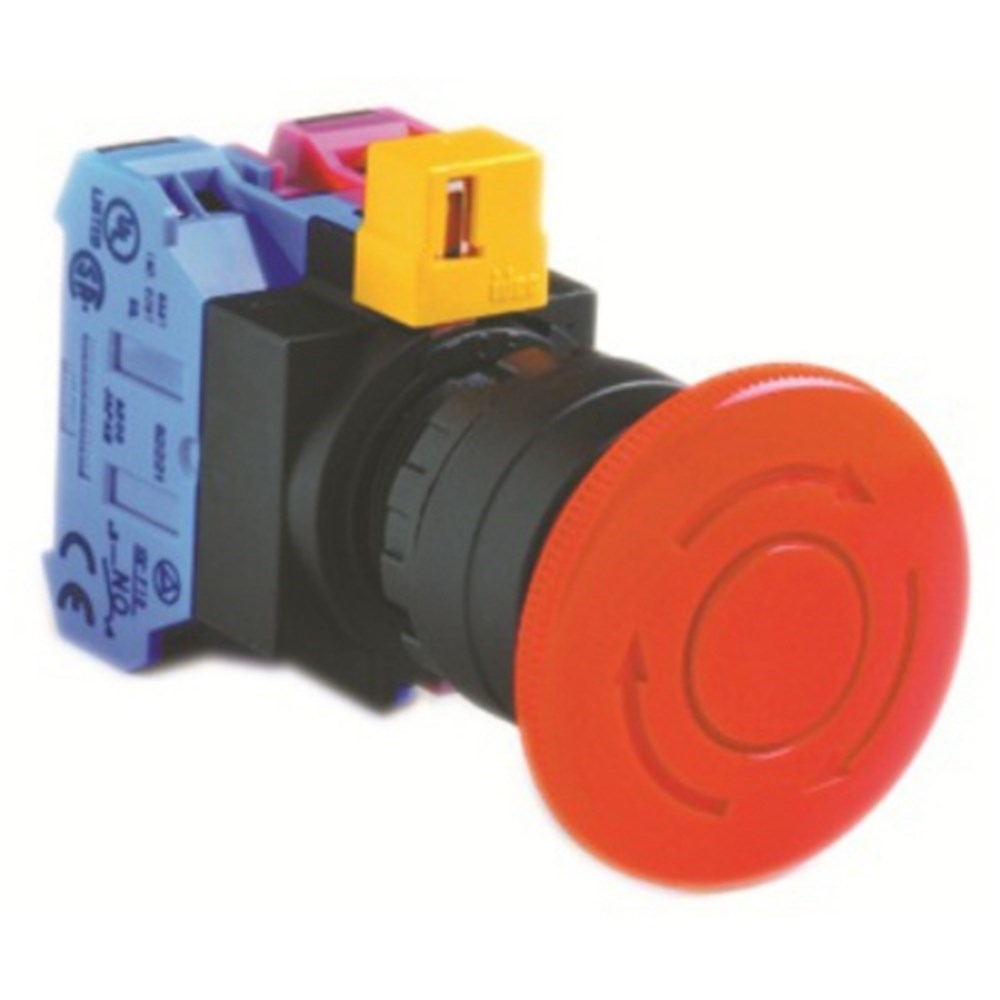

IDEC HW1B-V4F01R-K Emergency Stop Pushbutton Non-Illuminated 1NC Red Screw

Product Code: HW1B-V4F01R-K

  • Non-illuminated red pushbutton
  • Screw terminal connections
  • IP20, IP65 protection rating
  • 1NC contact configuration
  • Silver contact material
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Insulation Resistance (MO) 100
Mushroom Diameter (mm) 40
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -25 to +60
Rated Continuous Current (A) Contact Rating - 10
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Impulse Withstand Voltage (kV) 4
Tightening Torque (Nm) Locking Ring - 2.0
Product Type Emergency Stop Pushbutton
Brand IDEC
Series HW
Colour Red
Contact Configuration 1NC
Contact Material Silver
Degree of Protection IP20, IP65
Illumination Non-Illuminated
Mode of Operation Pushlock Turn Reset
Rated Impulse Withstand Voltage 4 kV
Terminal Type Screw

Description

The IDEC HW1B-V4F01R-K is a robust, non-illuminated mushroom emergency stop pushbutton designed for critical applications. This red pushbutton has a 40mm diameter for high visibility and easy activation. It features a 1NC (normally closed) contact configuration and is equipped with a pushlock turn reset mechanism for quick recovery after activation. Ideal for ensuring safety in various industrial settings, this emergency stop pushbutton is engineered to halt operations effectively when necessary.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
