Products

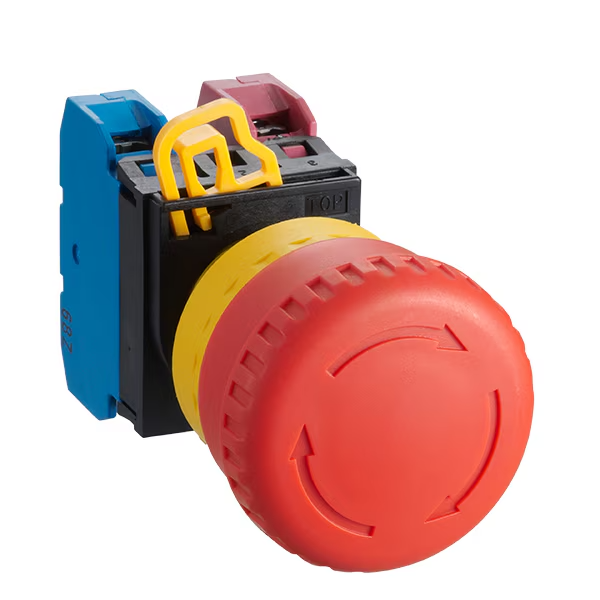

IDEC YW1B-V4E02R Emergency Stop Pushbutton Switch Illuminated 2NC 30mm W 41.4mm H 78.3mm D Red M3.5 Screw Pull

Product Code: YW1B-V4E02R

  • Illuminated red pushbutton for clear visibility
  • Compact size: 30mm width, 41.4mm height
  • Durable with IP20, IP65 protection ratings
  • Reliable 2NC contact configuration with silver contacts
  • Easy installation using M3.5 screw terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
Conventional Free-Air Thermal Current - Ith (A) 10
Mushroom Diameter (mm) 40
Mounting Hole Diameter (mm) 22
Rated Insulation Voltage (V) 600
Product Type Emergency Stop Pushbutton Switch
Brand IDEC
Series YW
Actuator Type Mushroom
Colour Red
Contact Configuration 2NC
Contact Material Silver
Degree of Protection IP20, IP65
Depth 78.3 mm
Height 41.4 mm
Illumination Illuminated
Mode of Operation Pushlock Pull/Turn Reset
Release Method Pull
Terminal Type M3.5 Screw
Width 30 mm

Description

The IDEC YW1B-V4E02R is a non-illuminated emergency stop button designed for safety applications. This red E-Stop features a 40mm push-pull/pushlock turn reset mechanism, ensuring quick and reliable activation and resetting. It is engineered for robust performance in industrial environments.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
